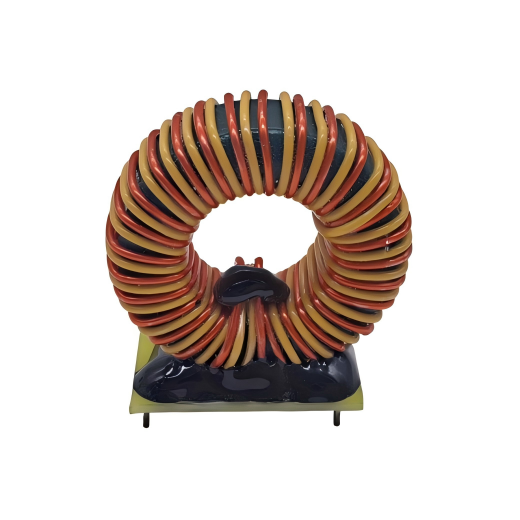

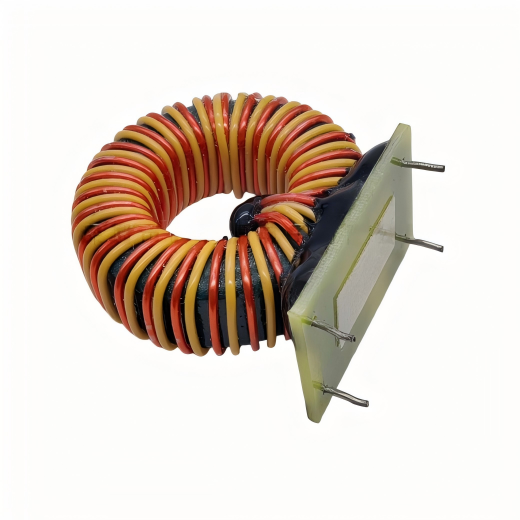

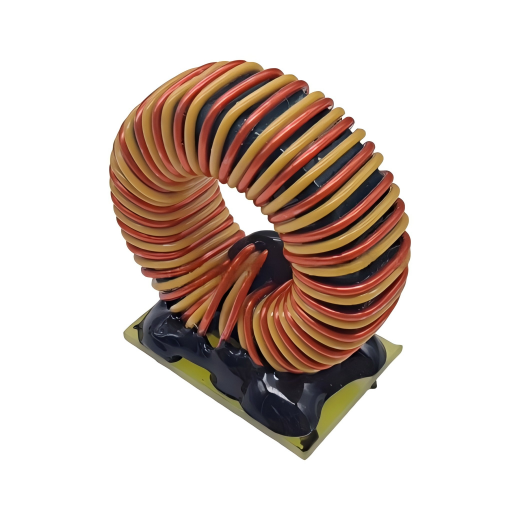

Common mode dual wire turns inductor with PCB mounting base
T251512
The vertical base of the filtering conductor adopts amorphous/nanocrystalline high permeability magnetic rings as the magnetic core substrate, with symmetrical double wire winding process of red and yellow enameled copper wires.
Quantity
The vertical base of the filtering conductor adopts amorphous/nanocrystalline high permeability magnetic rings as the magnetic core substrate, with symmetrical double wire winding process of red and yellow enameled copper wires. The bottom of the coil is reinforced with epoxy resin as a whole, with pcb mounting base， It is a core component for EMI filtering dedicated to new energy power sources and industrial equipment, high frequency high magnetic permeability ， Relying on the low leakage magnetic advantage of the circular magnetic circuit, it efficiently filters out common mode electromagnetic interference in the power supply line, ensuring the EMC compliance of the entire machine.
Core advantages of PI Series Iron silicon aluminum ring inductor
1. Superior magnetic core performance and high filtering efficiency
Choosing high permeability amorphous/nanocrystalline magnetic cores, compared to conventional manganese zinc ferrite, has lower high-frequency losses, higher saturation current, stable magnetic performance in a wide temperature environment, outstanding ability to suppress low-frequency and high-frequency common mode clutter, and effectively solves the problems of equipment power interference, abnormal noise, and excessive conduction.
2. Double line symmetrical winding, balanced electrical parameters
The red and yellow double windings have the same specifications of turns and are symmetrically arranged. The common mode impedance is high and the differential mode impedance is extremely small. When the normal operating current of the equipment passes through, the magnetic fields cancel each other out, without losing effective power or affecting the overall power supply efficiency of the machine; All copper high purity enamelled wire, insulation leather temperature resistance above 180 ℃, anti-aging, withstand pulse large current impact.
3. Epoxy overall sealing, stable and durable structure
The black epoxy resin between the coil and the base is fully sealed to isolate moisture, dust, and vibration, prevent winding looseness and short circuits, and adapt to harsh working conditions such as vehicle mounted, outdoor, and high-temperature cabinets; The insulation level meets the standard and the electrical safety factor is strengthened.
4. Vertical PCB base, easy to install
Equipped with a yellow fiberglass board fixed base and a standard vertical pin structure, it can be directly inserted and soldered to PCB circuit boards, with simple assembly, saving chassis space, and strong adaptability for automated SMT/plug-in production.
5. Circular low leakage magnetic design
The closed loop magnetic circuit structure has a much lower leakage flux than UU and EE common mode inductors, and will not interfere with peripheral circuit board components, resulting in better electromagnetic compatibility of the entire machine.
Choosing high permeability amorphous/nanocrystalline magnetic cores, compared to conventional manganese zinc ferrite, has lower high-frequency losses, higher saturation current, stable magnetic performance in a wide temperature environment, outstanding ability to suppress low-frequency and high-frequency common mode clutter, and effectively solves the problems of equipment power interference, abnormal noise, and excessive conduction.
2. Double line symmetrical winding, balanced electrical parameters
The red and yellow double windings have the same specifications of turns and are symmetrically arranged. The common mode impedance is high and the differential mode impedance is extremely small. When the normal operating current of the equipment passes through, the magnetic fields cancel each other out, without losing effective power or affecting the overall power supply efficiency of the machine; All copper high purity enamelled wire, insulation leather temperature resistance above 180 ℃, anti-aging, withstand pulse large current impact.
3. Epoxy overall sealing, stable and durable structure
The black epoxy resin between the coil and the base is fully sealed to isolate moisture, dust, and vibration, prevent winding looseness and short circuits, and adapt to harsh working conditions such as vehicle mounted, outdoor, and high-temperature cabinets; The insulation level meets the standard and the electrical safety factor is strengthened.
4. Vertical PCB base, easy to install
Equipped with a yellow fiberglass board fixed base and a standard vertical pin structure, it can be directly inserted and soldered to PCB circuit boards, with simple assembly, saving chassis space, and strong adaptability for automated SMT/plug-in production.
5. Circular low leakage magnetic design
The closed loop magnetic circuit structure has a much lower leakage flux than UU and EE common mode inductors, and will not interfere with peripheral circuit board components, resulting in better electromagnetic compatibility of the entire machine.
