Customized ferrite ring common mode filter inductor with PCB socket base as needed

Customized ferrite ring common mode filter inductor with PCB socket base as needed

T251513

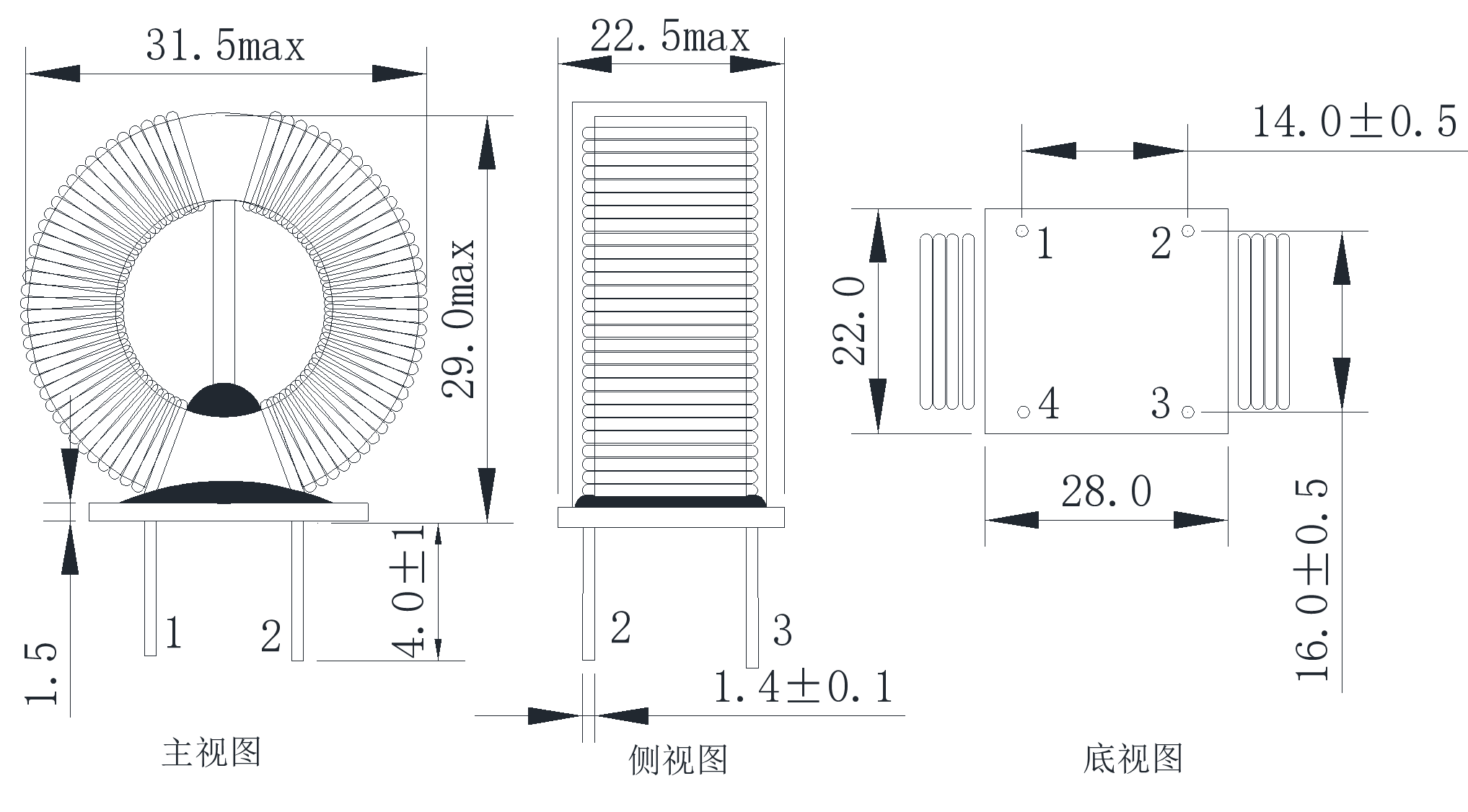

T251513 magnetic ring inductor, with a bare ring size of outer diameter 25mm x inner diameter 15mm x thickness 13mm, a conventional inductance range of 10-100 μ H, a rated current of 3-12A, and a working frequency of 20kHz~1MHz.
Contact Now
Download directory
T251513 Specification document.pdf
Download directory
T251513 Specification document.pdf

        T251513 magnetic ring coil with skeleton free design and high-purity enameled copper wire winding. The magnetic core has a distributed air gap, excellent DC bias characteristics, and high saturation current.

Product parameters
Scope of applicationfilterpackage formPlug in
Magnetic propertiesferrite coreWinding formSingle layer dense winding type
Magnetic core shaperotundityBrandCXWON
operating frequencyhigh frequencyInstallation MethodVertical non sealed
Skeleton materialPlasticInductance5mH
Sensory Resistance XL0.1（Ω）Distributed capacitance1（F）

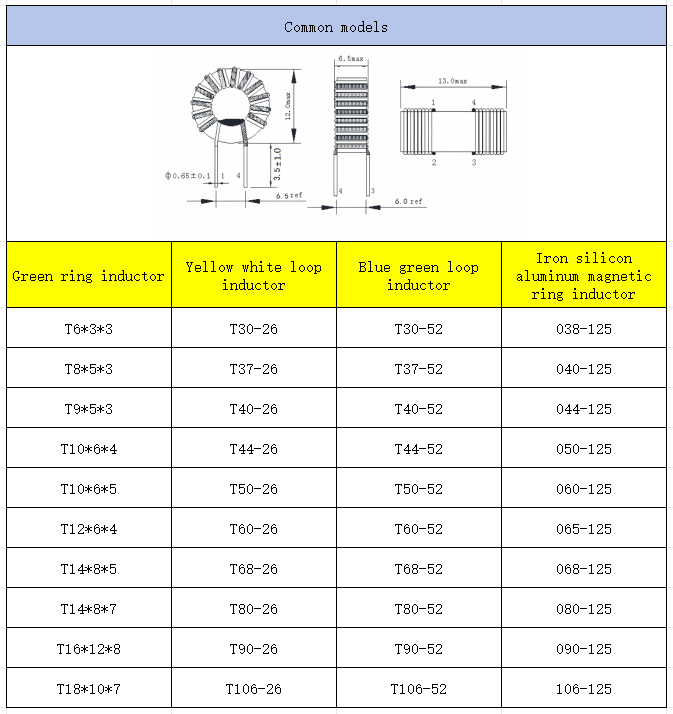

Common models
Customized ferrite ring common mode filter inductor with PCB socket base as needed

Core advantages of Surface mount inductor

1. Distributed air gap, excellent DC bias performance, and low inductance attenuation under high DC.
2. Iron silicon aluminum magnetic powder core has high saturation magnetic flux density and is not easily saturated under high current.
3. The high frequency loss in the magnetic core is low, and the overall conversion efficiency of the power supply is higher.
4. DCR has low DC resistance, low copper loss, no skeleton ring structure, compact size, and high power density.
5. Anti vibration, structurally stable, and the magnetic core is not easily cracked or displaced

Inductor real-shot details：
Customized ferrite ring common mode filter inductor with PCB socket base as needed
Customized ferrite ring common mode filter inductor with PCB socket base as needed
Customized ferrite ring common mode filter inductor with PCB socket base as needed

Typical application scenarios
Customized ferrite ring common mode filter inductor with PCB socket base as needed
Flowchart
Customized ferrite ring common mode filter inductor with PCB socket base as needed
Customized ferrite ring common mode filter inductor with PCB socket base as needed
Why choose us
Customized ferrite ring common mode filter inductor with PCB socket base as needed
Customized ferrite ring common mode filter inductor with PCB socket base as needed
FAQ

Q: What is the rated current range of T251513?
A: Conventional 3-12A, the current carrying capacity depends on the diameter of the enameled wire. The thicker the copper wire, the higher the rated current, and the smaller the DCR.


Q: What are the advantages of iron silicon aluminum T251513 compared to iron powder core magnetic rings?
A: The medium to high frequency magnetic core has lower losses, better DC bias characteristics, and smaller inductance attenuation under high current conditions; The disadvantage is that the material cost is higher than that of iron powder cores.


Q: How is the leakage magnetic performance of T251513?
A: Circular closed magnetic circuit, low leakage magnetic pole, low external electromagnetic radiation, reduces interference with surrounding PCB components, and is conducive to EMC debugging of the whole machine.


Q: What is the reason for the high temperature rise of T251513?
A: The actual working current exceeds the saturation current, the copper wire diameter is too small, the DCR is too large, the working frequency is too high, or there is insufficient heat dissipation space.


Q: Does T251513 support fully automatic winding production?
A: Supporting the processing of fully automatic magnetic ring winding equipment, the turns and inductance consistency of batch products are stable, suitable for large-scale orders of industrial power supplies.
