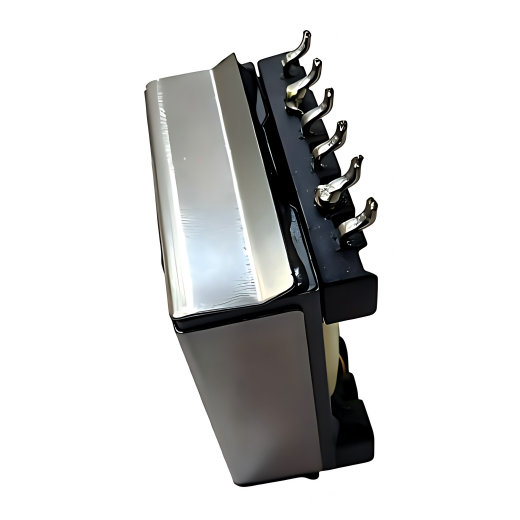

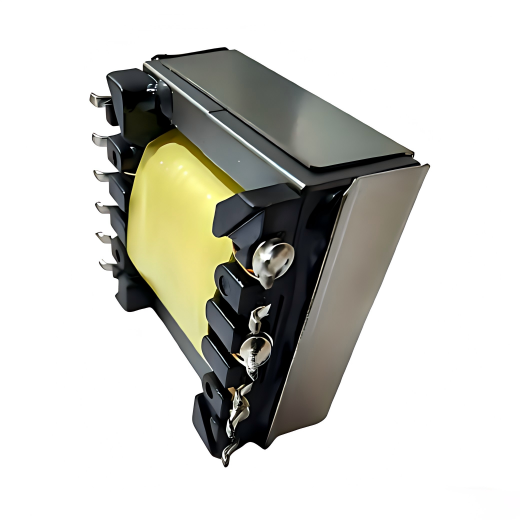

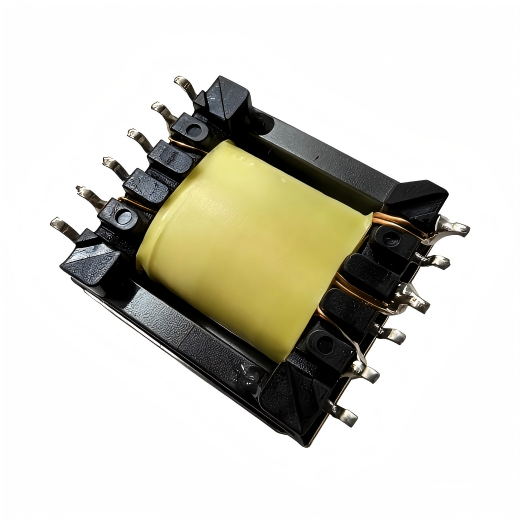

EPC patch Type Miniature pulse current transformer
EPC10
EPC series is an ultra-thin flat high-frequency ferrite transformer, which is composed of an EPC patch type flat ferrite core, a flame-retardant and high-temperature resistant plastic skeleton, and high-quality enameled copper wire precision wound to form a surface mount transformer.
EPC series pulse current transformer is an ultra-thin flat high-frequency ferrite transformer, which is composed of an EPC patch type flat ferrite core, a flame-retardant and high-temperature resistant plastic skele on, and high-quality enameled copper wire precision wound to form a surface mount transformer. The overall shape is slim and compact, the magnetic circuit structure is reasonably closed, the magnetic loss is low, the electromagnetic shielding performance is excellent, and it has the core advantages of low height, high power density, low leakage inductance, and low electromagnetic interference. It is the mainstream preferred UPS power supply for ultra-thin switch mode power supplies and compact power devices.The EPC series is an ultra-thin flat high-frequency ferrite transformer, which is composed of an EPC patch type flat ferrite core, a flame-retardant and high-temperature resistant plastic skeleton, and high-quality enameled copper wire precision wound to form a surface mount transformer. The overall shape is slim and compact, the magnetic circuit structure is reasonably closed, the magnetic loss is low, the electromagnetic shielding performance is excellent, and it has the core advantages of low height, high power density, low leakage inductance, and low electromagnetic interference. It is the mainstream preferred UPS power supply for ultra-thin switch mode power supplies and compact power devices.
Core advantages of EPC High frequency pulse transformer
1. Ultra thin flat design, low installation height
The slim body structure occupies a small space and is perfectly adapted to lightweight bodies, low shells, and compact circuit board layouts, meeting the design needs of device miniaturization and ultra-thin design.
2. High frequency low loss, lower temperature rise
Supported by high-quality ferrite material, the iron loss and copper loss are double reduced under high-frequency working conditions, resulting in high energy conversion efficiency, smooth temperature rise during continuous full load operation, and energy-saving durability.
3. Low leakage sensitivity and strong anti-interference ability
Optimized closed magnetic circuit+professional shielding winding design, low leakage inductance value, effectively suppresses EMI electromagnetic radiation interference, and helps equipment easily pass electromagnetic compatibility testing.
4. Excellent insulation performance, safe and reliable
Multi layer insulation protection design, high withstand voltage strength, insulation level compliance, good strong and weak electrical isolation effect, effectively avoiding leakage and breakdown risks, and safer to use.
5. High power density and strong load capacity
The window utilization rate is high, the same volume can carry more power, the load capacity is stable, and it can adapt to complex working environments such as continuous full load and intermittent heavy load for a long time.
6. Wide applicability and strong adaptability
Complete specifications and models, stable and consistent electrical parameters, suitable for various power circuit topologies, uniform batch quality, high cost-effectiveness, suitable for large-scale production matching.
Customized Services
1. Customization of electrical parameters
Customizable input and output voltage, turn ratio, power, inductance, leakage inductance, and resistance parameters to accurately match customer power solutions.
2. Customization of structure and pins
Customize the number of pins, pin spacing, installation size, skeleton specifications, and adapt to PCB board openings and installation layouts.
3. Customized winding process
Adjustable wire diameter, winding method, and outlet position, increased shielding winding to reduce interference and meet EMC design requirements.
4. Material and temperature resistance customization
Optional high-temperature resistant wires and thickened insulation materials can be used to enhance temperature resistance and voltage resistance, adapting to complex environments with high and low temperatures.
5. Customization of appearance and craftsmanship
Insulation tape, immersion paint, and sealing processes are optional, with moisture-proof, shockproof, dust-proof reinforcement to enhance product service life.
6. OEM/ODM one-stop customization
Support collaborative development of drawings, samples, and solutions, rapid prototyping, small batch trial production+large-scale production, stable delivery time, and the ability to print customer models and logos.
EPC series dry type isolation transformer real-shot details：
