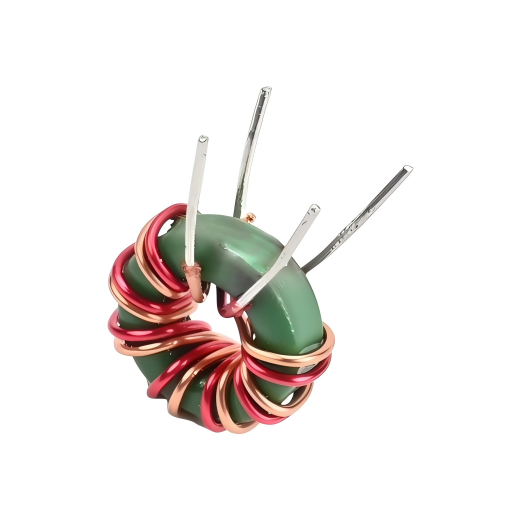

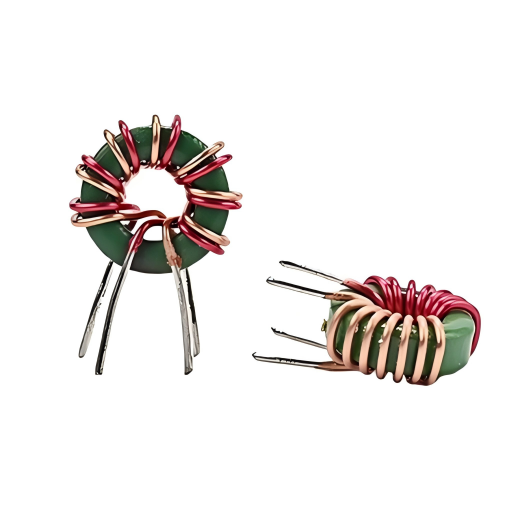

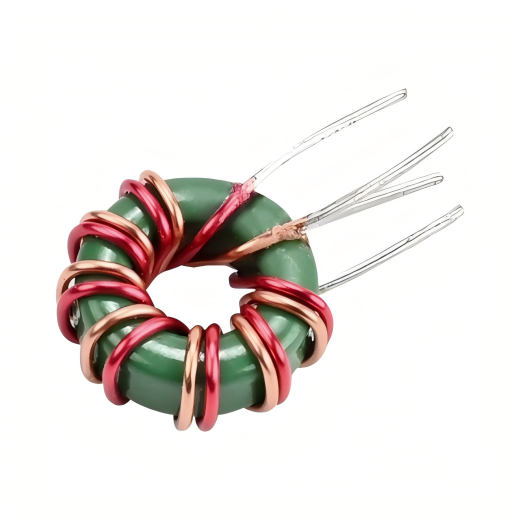

Green inductor three phase magnetic ring double winding
T14*8*7
The three phase inductor is a three phase magnetic direct insertion common mode choke inductor, which adopts a green coated manganese zinc ferrite ring magnetic core, and is symmetrically wound in the same direction with double winding.
Quantity
The three phase inductor is a three phase magnetic direct insertion common mode choke inductor, which adopts a green coated manganese zinc ferrite ring magnetic core, and is symmetrically wound in the same direction with double winding. The output end is tinned with direct insertion pins and can be directly inserted and soldered onto a PCB,Divided into plug in horizontal and plug in vertical. By relying on a symmetrical winding structure to offset differential current and absorb common mode electromagnetic noise, EMI filtering components are standard on the power input end. The green insulation coating protects the magnetic core from moisture, bumps, and has stronger insulation properties.
Core advantages of Green inductor
1. Excellent filtering performance: High permeability ferrite core, strong common mode noise suppression ability, efficiently solves the EMC interference problem of the whole machine, and helps the product pass CE and UL safety testing smoothly.
2. Stable and reliable workmanship: Fully automatic winding equipment is used for production, with uniform winding turns, tight wire wrapping, high consistency of inductance parameters, small batch errors, low temperature rise, and high voltage resistance.
3. Structural adaptation for mass production: Directly insert tin plated pins, adapt to automated plug-in soldering of the entire machine, and improve customer overall production efficiency.
4. Quality compliance: The raw materials meet the standards, and the products can provide CQC/UL certification materials, suitable for high requirements such as fire protection, industrial control, and medical equipment.
5. One stop matching: Our factory synchronously provides high-frequency transformers, power inductors, and low-frequency coils. Customers can purchase all types of electromagnetic components in one stop.
2. Stable and reliable workmanship: Fully automatic winding equipment is used for production, with uniform winding turns, tight wire wrapping, high consistency of inductance parameters, small batch errors, low temperature rise, and high voltage resistance.
3. Structural adaptation for mass production: Directly insert tin plated pins, adapt to automated plug-in soldering of the entire machine, and improve customer overall production efficiency.
4. Quality compliance: The raw materials meet the standards, and the products can provide CQC/UL certification materials, suitable for high requirements such as fire protection, industrial control, and medical equipment.
5. One stop matching: Our factory synchronously provides high-frequency transformers, power inductors, and low-frequency coils. Customers can purchase all types of electromagnetic components in one stop.
Customized Services
1. Customization of electrical parameters
We can customize core electrical parameters such as inductance (from μ H level to mH level), rated current, DC resistance, saturation current, etc. according to customer needs, perfectly adapting to circuit design requirements.
2. Customization of mechanical specifications
Support customized mechanical specifications such as magnetic core size (outer diameter/inner diameter/height), wire diameter, turns, pin length, pin spacing, etc., to adapt to various PCB layouts and installation space limitations.
3. Customization of materials and processes
Optional manganese zinc/nickel zinc ferrite cores, enameled wires with different insulation levels, epoxy resin encapsulation, etc., meet the requirements of high temperature, high humidity, and special environmental use.
4. Certification and Compliance Support
We can assist customers in completing certification testing and data preparation for CE, UL, RoHS, REACH, etc., helping products smoothly enter the global market.
5. OEM/ODM services
Support customized packaging, labeling, product model naming, and provide full process ODM design services based on customer application scenarios (automotive, industrial, consumer electronics, etc.).
6. Flexible order support
Provide fast sampling services, support full process delivery from sample orders to mass production, flexible MOQ, and adapt to customer R&D and production pace.
Inductor real-shot details：
Company Introduction
Shenzhen CXWON Technology Co., Ltd. was established in 2012. It is a national high-tech enterprise that integrates R&D, production and sales. It has been specializing in the field of electronic transformers for over a decade and complies with international safety standards. The company's products have steadily increased their market share in the domestic market. The factory covers an area of 5,000 square meters and is equipped with first-class facilities and advanced equipment, as well as numerous outstanding professionals.
The company offers over 1,000 different products, specializing in the research and production of high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, ozone high-voltage packs, negative ion generators, power adapters, switching power supplies, and various inductor coils. These products are widely used in household appliances, intelligent control, communication equipment, instruments and meters, security control, industrial control, and many other fields. The company provides high-performance electronic transformers and corresponding solutions to global customers. Its products have passed UL certification and ISO quality management system certification. Some have also obtained safety certifications such as TUV, GS, CE, FCC, and CQC. The quality meets international standards.Over the years, our company has adhered to the principle of"unceasing pursuit of perfect quality and fully meeting customer requirements."This is the company's persistent effort goal and direction.
The company offers over 1,000 different products, specializing in the research and production of high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, ozone high-voltage packs, negative ion generators, power adapters, switching power supplies, and various inductor coils. These products are widely used in household appliances, intelligent control, communication equipment, instruments and meters, security control, industrial control, and many other fields. The company provides high-performance electronic transformers and corresponding solutions to global customers. Its products have passed UL certification and ISO quality management system certification. Some have also obtained safety certifications such as TUV, GS, CE, FCC, and CQC. The quality meets international standards.Over the years, our company has adhered to the principle of"unceasing pursuit of perfect quality and fully meeting customer requirements."This is the company's persistent effort goal and direction.
Typical application scenarios
1. Power supply equipment
UPS uninterruptible power supply, EPS fire emergency power supply, switch mode power supply, LED driver power supply, charger, adapter, POE network power supply.
2. Fire and security products
Fire alarm controller, fire emergency lighting, gas fire extinguishing control module, security monitoring power supply.
3. Instruments and electrical equipment
Digital multimeter, clamp meter, industrial testing instrument, laboratory measuring instrument circuit board.
4. Audiovisual industrial control equipment
D-class digital amplifier, constant voltage public broadcasting amplifier, frequency converter, industrial control board, charging pile control power supply.
5. New energy supporting facilities
Small variable frequency generator control board, onboard power supply, energy storage module power supply.

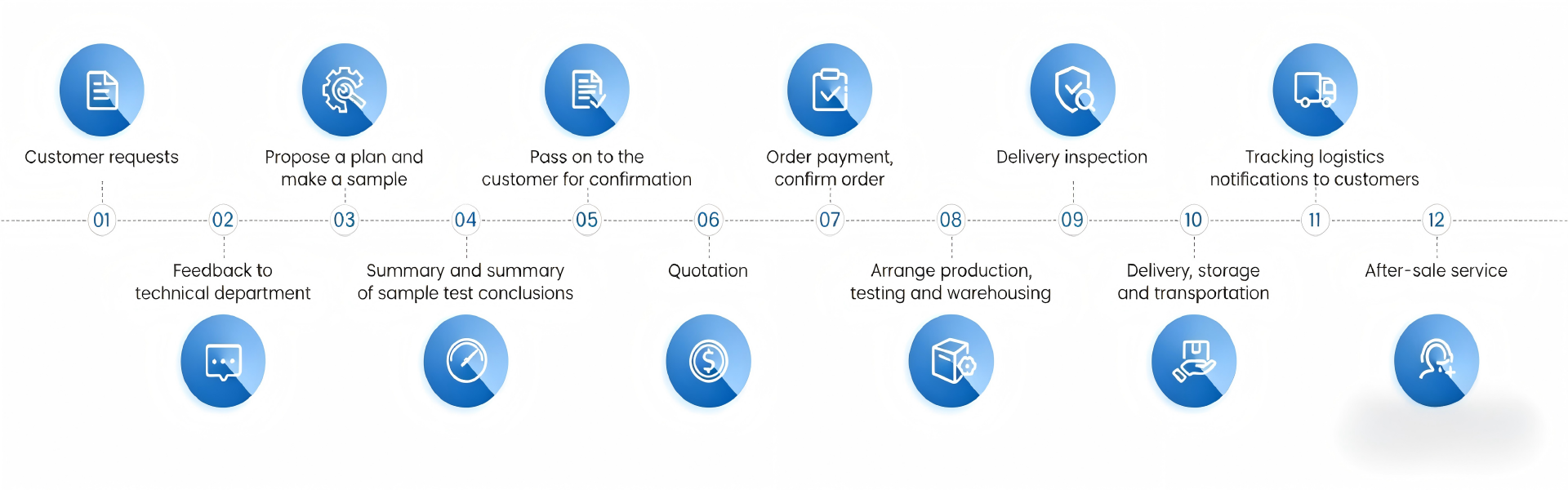

Flowchart
