LED driver power supply Ferrite EC series transformer
EC35
Horizontal ec transformer is a ferrite ec transformer, which is a very classic core structure in industrial grade and high-power power supply solutions.The mainstream specifications cover the entire series including EC28, EC30, EC35, EC39, EC42, and EC45. The working frequency ranges from 20kHz to 500kHz, and the power range is from 30W to 800W.
Quantity
Horizontal ec transformer is a ferrite ec transformer, which is a very classic core structure in industrial grade and high-power power supply solutions.The mainstream specifications cover the entire series including EC28, EC30, EC35, EC39, EC42, and EC45. The working frequency ranges from 20kHz to 500kHz, and the power range is from 30W to 800W. It adopts high saturation and low loss ferrite cores combined with a widened safety and flame-retardant frame. It is precisely manufactured through multi-layer winding, multi-layer insulation isolation, and vacuum impregnation and curing processes.The EC magnetic core features a large cross-sectional area and a large heat dissipation surface, with strong power-bearing capacity, low temperature rise and high stability. It supports mainstream switching power supply topologies such as flyback and forward. The product has excellent insulation withstand voltage performance and strong anti-interference ability. The batch parameter consistency is high, and it fully complies with safety regulations and RoHS environmental protection standards. It is a mainstream medium to large power magnetic component for industrial power supplies, new energy, high-power LED drivers, and household and industrial control equipment.
Core advantages of EC Type transformer
1. Strong adaptability to high power: The magnetic core has a large window area and can be wound with more windings, supporting higher power levels (from tens of watts to over kilowatts).
2. Good heat dissipation performance: symmetrical structure, more reasonable heat dissipation path, suitable for long-term full load operation.
3. Low leakage inductance and strong anti-interference ability: optimized magnetic circuit design with less leakage, lower high-frequency electromagnetic interference, and better ripple control.
4. High reliability: The skeleton and magnetic core structure are sturdy, with strong seismic and impact resistance, suitable for harsh industrial environments.
1. Strong adaptability to high power: The magnetic core has a large window area and can be wound with more windings, supporting higher power levels (from tens of watts to over kilowatts).
2. Good heat dissipation performance: symmetrical structure, more reasonable heat dissipation path, suitable for long-term full load operation.
3. Low leakage inductance and strong anti-interference ability: optimized magnetic circuit design with less leakage, lower high-frequency electromagnetic interference, and better ripple control.
4. High reliability: The skeleton and magnetic core structure are sturdy, with strong seismic and impact resistance, suitable for harsh industrial environments.
Customized Services
We are a high frequency transformer manufacturers, provide one-stop customized transformer services, from requirement communication, scheme design, sample making to mass production, with professional engineers following up throughout the process to create exclusive supporting components for your power solution.
1.Customize core parameters as needed
We can customize key parameters such as turns ratio, operating frequency, voltage ratio, and multi winding according to your circuit topology, power level, and input/output requirements, and adapt to various scenarios such as switching power supplies, adapters, LED drivers, industrial control equipment, etc.
2.Multiple specifications of magnetic cores and packaging options available
Supports multiple magnetic core specifications such as EE/ETD/EC/EI, and offers vertical/horizontal direct insertion, surface mount (SMD), and lead packaging forms. The size and pin layout can be optimized according to PCB layout to meet space and safety requirements.
3.Optimization of materials and processes as needed
Optional all copper windings, materials of different insulation levels, support insulation tape wrapping or epoxy resin encapsulation process, improve insulation strength, heat dissipation performance and anti-interference ability as needed, and can cooperate with customers to complete UL/CE/ROHS and other safety certifications.
4.Quick prototyping and stable delivery
Support rapid sample making, small batch trial production to large-scale production, and complete quality control processes to ensure product consistency and stability. At the same time, provide flexible delivery plans to ensure project progress.
5.Full process technical support
The engineering team provides professional advice on magnetic core selection, winding optimization, safety design, etc., to solve your technical problems in power supply design and help efficiently implement power supply solutions quickly.
1.Customize core parameters as needed
We can customize key parameters such as turns ratio, operating frequency, voltage ratio, and multi winding according to your circuit topology, power level, and input/output requirements, and adapt to various scenarios such as switching power supplies, adapters, LED drivers, industrial control equipment, etc.
2.Multiple specifications of magnetic cores and packaging options available
Supports multiple magnetic core specifications such as EE/ETD/EC/EI, and offers vertical/horizontal direct insertion, surface mount (SMD), and lead packaging forms. The size and pin layout can be optimized according to PCB layout to meet space and safety requirements.
3.Optimization of materials and processes as needed
Optional all copper windings, materials of different insulation levels, support insulation tape wrapping or epoxy resin encapsulation process, improve insulation strength, heat dissipation performance and anti-interference ability as needed, and can cooperate with customers to complete UL/CE/ROHS and other safety certifications.
4.Quick prototyping and stable delivery
Support rapid sample making, small batch trial production to large-scale production, and complete quality control processes to ensure product consistency and stability. At the same time, provide flexible delivery plans to ensure project progress.
5.Full process technical support
The engineering team provides professional advice on magnetic core selection, winding optimization, safety design, etc., to solve your technical problems in power supply design and help efficiently implement power supply solutions quickly.

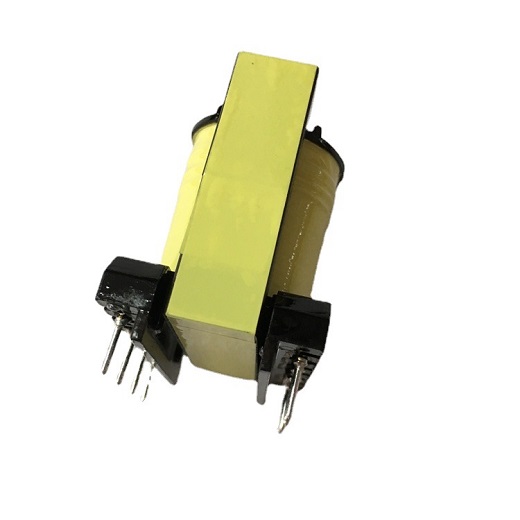

EC series transformer real-shot details：
Company Introduction
Shenzhen CXWON Technology Co., Ltd. was established in 2012. It is a national high-tech enterprise that integrates R&D, production and sales. It has been specializing in the field of electronic transformers for over a decade and complies with international safety standards. The company's products have steadily increased their market share in the domestic market. The factory covers an area of 5,000 square meters and is equipped with first-class facilities and advanced equipment, as well as numerous outstanding professionals.
The company offers over 1,000 different products, specializing in the research and production of high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, ozone high-voltage packs, negative ion generators, power adapters, switching power supplies, and various inductor coils. These products are widely used in household appliances, intelligent control, communication equipment, instruments and meters, security control, industrial control, and many other fields. The company provides high-performance electronic transformers and corresponding solutions to global customers. Its products have passed UL certification and ISO quality management system certification. Some have also obtained safety certifications such as TUV, GS, CE, FCC, and CQC. The quality meets international standards.
Over the years, our company has adhered to the principle of"unceasing pursuit of perfect quality and fully meeting customer requirements."This is the company's persistent effort goal and direction.
The company offers over 1,000 different products, specializing in the research and production of high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, ozone high-voltage packs, negative ion generators, power adapters, switching power supplies, and various inductor coils. These products are widely used in household appliances, intelligent control, communication equipment, instruments and meters, security control, industrial control, and many other fields. The company provides high-performance electronic transformers and corresponding solutions to global customers. Its products have passed UL certification and ISO quality management system certification. Some have also obtained safety certifications such as TUV, GS, CE, FCC, and CQC. The quality meets international standards.
Over the years, our company has adhered to the principle of"unceasing pursuit of perfect quality and fully meeting customer requirements."This is the company's persistent effort goal and direction.
Typical application scenarios
ThisIndustrial grade high power EC type high frequency transformer is widely used in various small AC power supply devices. Practical scenarios include:
Industrial high-power switching power supply module
UPS uninterruptible power supply, inverter, charging station power supply
Power supply for communication base stations and servers
Medical equipment, high-power LED driver power supply
LLC resonant power supply, full bridge/half bridge topology power supply
Industrial high-power switching power supply module
UPS uninterruptible power supply, inverter, charging station power supply
Power supply for communication base stations and servers
Medical equipment, high-power LED driver power supply
LLC resonant power supply, full bridge/half bridge topology power supply

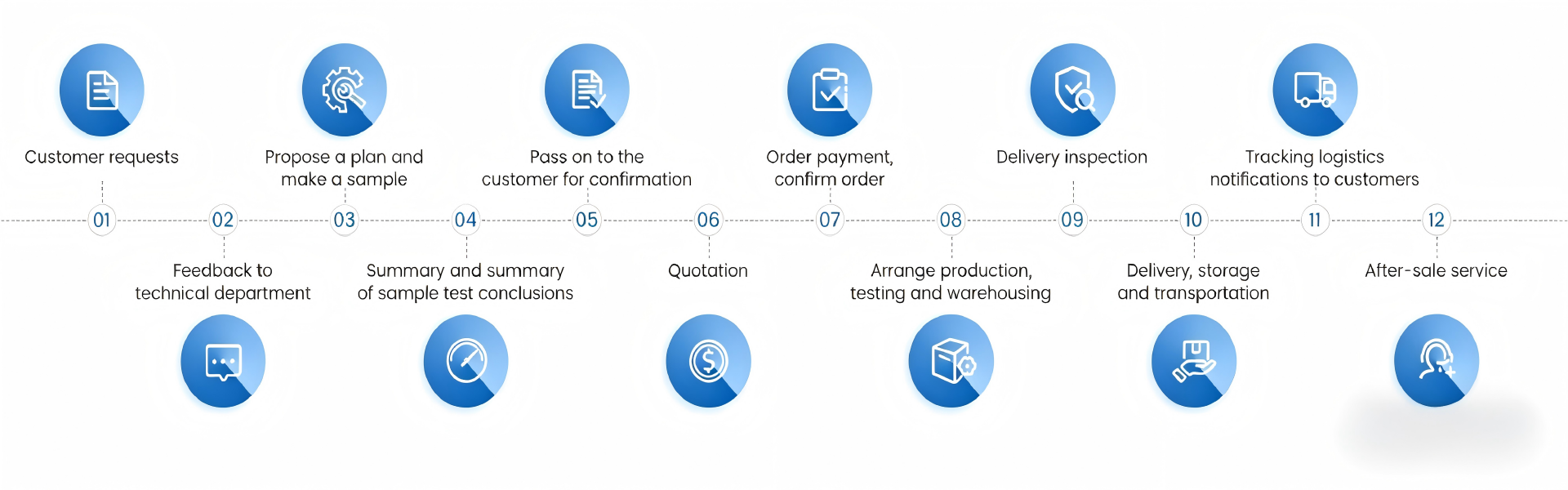

Flowchart
