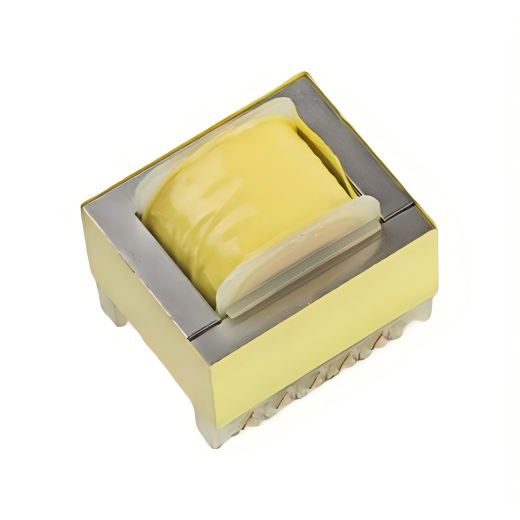

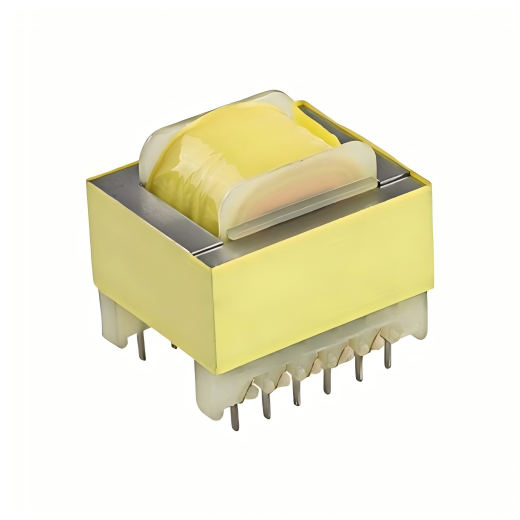

Low-power power-frequency conversion in transformer
EI4825
Plug in transformer EI low frequency transformer is a power transformer specially designed for low-power AC power supply scenarios.
Quantity
Plug in transformer EI low frequency transformer is a power transformer specially designed for low-power AC power supply scenarios. It adopts the classic EI core structure and provides stable and safe power conversion and electrical isolation solutions for various low-voltage AC devices. It is widely applicable to scenarios such as adapter 220v to 110v，home appliance control boards, small industrial control equipment, lighting, and instruments and meters.
Core advantage Plug in transformer:
1. Stable Output, Reliable Performance
Utilizing high-quality oriented silicon steel sheets, the no-load loss is low, the temperature rise is small, and the voltage deviation during long-term operation is controlled within ±5%. This provides a stable 12V AC power supply for the subsequent circuitry.
Purely oxygen-free copper windings, with excellent conductivity and high voltage conversion efficiency, reduce unnecessary energy loss and are suitable for equipment with high requirements for power supply stability.
2. Safe Isolation, Multiple Protection
The windings are insulated with enhanced technology, providing reliable electrical isolation performance. It effectively suppresses grid interference and reduces the impact of surges and noise on the equipment, protecting the circuit safety.
Overall immersion coating + blue shell packaging treatment, resistant to moisture, dust, and shock, suitable for various complex usage environments, and can extend the product's service life.
3. Compact and Compact, Strong Adaptability
Standard EI type structure, small in size and not occupying space. The plug-in pin design is convenient for PCB board welding and installation. Customized fixed ear pieces can also be provided according to requirements, suitable for various equipment installation holes.
Specifications of 110V input and 12V/5.5W output, perfectly matching the power supply requirements of small power equipment in 110V mains power environments.
4. Mature Technology, Stable Quality
Mature production process, before leaving the factory, undergoes withstand voltage test, no-load current test, load voltage test, and temperature rise test to ensure that each product meets performance standards. It can be used in batches for matching.
Purely oxygen-free copper windings, with excellent conductivity and high voltage conversion efficiency, reduce unnecessary energy loss and are suitable for equipment with high requirements for power supply stability.
2. Safe Isolation, Multiple Protection
The windings are insulated with enhanced technology, providing reliable electrical isolation performance. It effectively suppresses grid interference and reduces the impact of surges and noise on the equipment, protecting the circuit safety.
Overall immersion coating + blue shell packaging treatment, resistant to moisture, dust, and shock, suitable for various complex usage environments, and can extend the product's service life.
3. Compact and Compact, Strong Adaptability
Standard EI type structure, small in size and not occupying space. The plug-in pin design is convenient for PCB board welding and installation. Customized fixed ear pieces can also be provided according to requirements, suitable for various equipment installation holes.
Specifications of 110V input and 12V/5.5W output, perfectly matching the power supply requirements of small power equipment in 110V mains power environments.
4. Mature Technology, Stable Quality
Mature production process, before leaving the factory, undergoes withstand voltage test, no-load current test, load voltage test, and temperature rise test to ensure that each product meets performance standards. It can be used in batches for matching.
Customized Services of electrical transformers for sale
We offer on-demand customization of transformer parameters, which can be adjusted according to customer requirements:
Input voltage (220V/110V / multi-specification customization)
Output voltage and number of circuits (single circuit / multiple AC voltage customization)
Power rating, winding wire diameter and current specification
Terminal blocks / connector types
Insulation level and protection level, compatible with different industry standards.
Input voltage (220V/110V / multi-specification customization)
Output voltage and number of circuits (single circuit / multiple AC voltage customization)
Power rating, winding wire diameter and current specification
Terminal blocks / connector types
Insulation level and protection level, compatible with different industry standards.
Quality Assurance
Produced strictly in accordance with industry standards. Factory inspection is conducted before leaving the factory. Key indicators are tested 100% to ensure compliance.
Quality inspection reports and safety compliance test reports can be provided. Support for batch orders and customization is available. Suitable for OEM/ODM project requirements.
Produced strictly in accordance with industry standards. Factory inspection is conducted before leaving the factory. Key indicators are tested 100% to ensure compliance.
Quality inspection reports and safety compliance test reports can be provided. Support for batch orders and customization is available. Suitable for OEM/ODM project requirements.
Plug in transformer real-shot details：
Company Introduction
Shenzhen CXWON Technology Co., Ltd. is a trustworthy enterprise integrating R&D, production and sales. It specializes in manufacturing various types of inductors such as high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, negative ion generators, ozone high-voltage packages, mosquito-killing lamps, UV lamp power supplies, etc. Our products are widely used in household appliances, intelligent control, medical fitness equipment, communication devices, instruments and meters, security control, industrial control, ozone negative ion generators, energy conservation and environmental protection, etc. Some of our products have obtained safety certifications such as UL, TUV, GS, CE, FCC, CQC, etc.
Typical application scenarios
The plug in transformer EI low frequency transformer is widely applicable to various low-power low-voltage AC power supply scenarios.
Typical applications include:This type of low-power low-frequency transformer is commonly used for:
1.Small household appliance power supply (such as internal power adapters for routers, set-top boxes, and speakers)
2.Auxiliary power supply for industrial control panels and instruments
3.Power supply for security equipment and access control systems
4.Auxiliary low-voltage power supply for charging stations and new energy equipment (suitable for your new energy electronic components industry scenario)
Flowchart
FAQ
Q1: What types of magnetic components can you customize?
A: We offer complete OEM and ODM services for high-frequency transformers, low-frequency power transformers, common-mode inductors, power inductors, ring coils, flat wire inductors, filter reactors, and multi-winding coils. Support through through-hole/solder pad (SMD), vertical/horizontal installation, optional EE/EI/PQ, ring ferrite or silicon steel core. Widely used in switching power supplies, new energy chargers, industrial control, medical equipment, and solar inverters, etc.
Q2: What technical parameters need to be provided when making the quotation?
A: You can provide electrical parameters (inductance value mH/uH, DCR, Isat, turns ratio, operating frequency, withstand voltage value), size drawings, physical samples, operating temperature range, environmental requirements, and annual order quantity. If only the application scenario is provided without the complete specifications, our engineers will design a solution for you for free.
Q3: Can I customize the inductance value, DC resistance (DCR), leakage inductance and insulation voltage?
A: All electrical parameters can be adjusted. We offer inductance tolerances of ±5%, ±10%, and ±20%; we use multi-strand Litz wire to reduce DC resistance and heat generation; we control leakage inductance for high-frequency transformers; the insulation withstand voltage can be selected from 1kV to 5kV.
Q4: Can I customize the pin type, wire length and installation structure?
A: Yes. We support vertical/horizontal through-hole, SMD base, extended leads, custom wire color, insulating sleeves, vacuum impregnation, epoxy resin casting, metal shielding casings, and customer-specific part number silk-screening, etc.
Q5: Will the unit price be lower if the order quantity is larger?
A: We use a tiered pricing approach. The larger the order quantity, the lower the raw material costs for the cores and wires, and thus the unit price decreases accordingly. Long-term cooperative customers can enjoy additional annual discounts.
Q6: If I only have the requirements for the equipment application, can you provide the design drawings?
A: We offer free development services for magnetic component solutions. Our engineers will generate circuit diagrams, winding specifications and size drawings based on the power, frequency and size limitations of the equipment. After confirmation, samples will be produced.
Q7: What tests will be conducted before shipment? Can test reports be provided?
A: 100% comprehensive inspections will be carried out for inductance, DC resistance, withstand voltage, on-off capability and appearance; sampling inspections will be conducted for aging, high and low temperature cycling, salt spray, and vibration. Corresponding quality inspection reports for each batch of goods can be attached. The complete inspection data for long-term cooperative customers will be archived for a long time.
Q8: Can I choose different magnetic core materials?
A: All series of magnetic core materials can be selected: manganese-zinc ferrite and nickel-zinc materials are suitable for high-frequency scenarios; iron-silicon-aluminum and iron powder cores are used for large current inductors; cold-rolled silicon steel sheets are used for low-frequency transformers. We will select the optimal magnetic core based on loss, current, and usage frequency requirements.
A: We offer complete OEM and ODM services for high-frequency transformers, low-frequency power transformers, common-mode inductors, power inductors, ring coils, flat wire inductors, filter reactors, and multi-winding coils. Support through through-hole/solder pad (SMD), vertical/horizontal installation, optional EE/EI/PQ, ring ferrite or silicon steel core. Widely used in switching power supplies, new energy chargers, industrial control, medical equipment, and solar inverters, etc.
Q2: What technical parameters need to be provided when making the quotation?
A: You can provide electrical parameters (inductance value mH/uH, DCR, Isat, turns ratio, operating frequency, withstand voltage value), size drawings, physical samples, operating temperature range, environmental requirements, and annual order quantity. If only the application scenario is provided without the complete specifications, our engineers will design a solution for you for free.
Q3: Can I customize the inductance value, DC resistance (DCR), leakage inductance and insulation voltage?
A: All electrical parameters can be adjusted. We offer inductance tolerances of ±5%, ±10%, and ±20%; we use multi-strand Litz wire to reduce DC resistance and heat generation; we control leakage inductance for high-frequency transformers; the insulation withstand voltage can be selected from 1kV to 5kV.
Q4: Can I customize the pin type, wire length and installation structure?
A: Yes. We support vertical/horizontal through-hole, SMD base, extended leads, custom wire color, insulating sleeves, vacuum impregnation, epoxy resin casting, metal shielding casings, and customer-specific part number silk-screening, etc.
Q5: Will the unit price be lower if the order quantity is larger?
A: We use a tiered pricing approach. The larger the order quantity, the lower the raw material costs for the cores and wires, and thus the unit price decreases accordingly. Long-term cooperative customers can enjoy additional annual discounts.
Q6: If I only have the requirements for the equipment application, can you provide the design drawings?
A: We offer free development services for magnetic component solutions. Our engineers will generate circuit diagrams, winding specifications and size drawings based on the power, frequency and size limitations of the equipment. After confirmation, samples will be produced.
Q7: What tests will be conducted before shipment? Can test reports be provided?
A: 100% comprehensive inspections will be carried out for inductance, DC resistance, withstand voltage, on-off capability and appearance; sampling inspections will be conducted for aging, high and low temperature cycling, salt spray, and vibration. Corresponding quality inspection reports for each batch of goods can be attached. The complete inspection data for long-term cooperative customers will be archived for a long time.
Q8: Can I choose different magnetic core materials?
A: All series of magnetic core materials can be selected: manganese-zinc ferrite and nickel-zinc materials are suitable for high-frequency scenarios; iron-silicon-aluminum and iron powder cores are used for large current inductors; cold-rolled silicon steel sheets are used for low-frequency transformers. We will select the optimal magnetic core based on loss, current, and usage frequency requirements.
