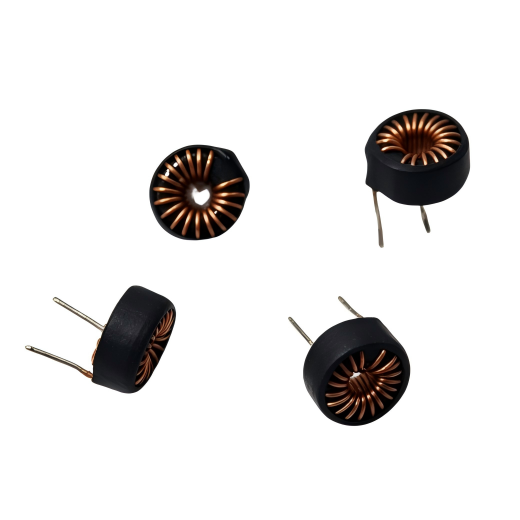

Miniature power circuit magnetic inductance custom coil
T16125
Magnetic inductance is a compact, high-performance energy storage and filtering component designed for medium and low-power DC-DC converters, LED drivers, and consumer power supplies.
Quantity
Magnetic inductance is a compact, high-performance energy storage and filtering component designed for medium and low-power DC-DC converters, LED drivers, and consumer power supplies. Featuring a closed-loop toroidal magnetic core and precision single-layer copper winding, this inductor delivers low DC resistance (DCR), low core loss, and minimal electromagnetic interference (EMI), ensuring stable and efficient operation in various power conversion circuits.support skeleton coil customization.
Core advantages of Magnetic inductance
1.Low DCR & High Efficiency: Thick copper wire winding ensures low DC resistance, minimizing power loss and temperature rise for better energy efficiency.
2.Compact & Low EMI: Closed magnetic toroidal core design delivers ultra-low leakage flux, reducing electromagnetic interference to surrounding circuits.
3.Cost-Effective & Reliable: Simple single-winding structure with consistent performance, ideal for high-volume, cost-sensitive consumer and industrial applications.
4.Excellent Saturation Performance: High-grade magnetic core maintains stable inductance under high current conditions, preventing performance drop in power circuits.
Customized Services of custom coil
1. Customization of electrical parameters
We can customize core electrical parameters such as inductance (from μ H level to mH level), rated current, DC resistance, saturation current, etc. according to customer needs, perfectly adapting to circuit design requirements.
2. Customization of mechanical specifications
Support customized mechanical specifications such as magnetic core size (outer diameter/inner diameter/height), wire diameter, turns, pin length, pin spacing, etc., to adapt to various PCB layouts and installation space limitations.
3. Customization of materials and processes
Optional manganese zinc/nickel zinc ferrite cores, enameled wires with different insulation levels, epoxy resin encapsulation, etc., meet the requirements of high temperature, high humidity, and special environmental use.
4. Certification and Compliance Support
We can assist customers in completing certification testing and data preparation for CE, UL, RoHS, REACH, etc., helping products smoothly enter the global market.
5. OEM/ODM services
Support customized packaging, labeling, product model naming, and provide full process ODM design services based on customer application scenarios (automotive, industrial, consumer electronics, etc.).
6. Flexible order support
Provide fast sampling services, support full process delivery from sample orders to mass production, flexible MOQ, and adapt to customer R&D and production pace.

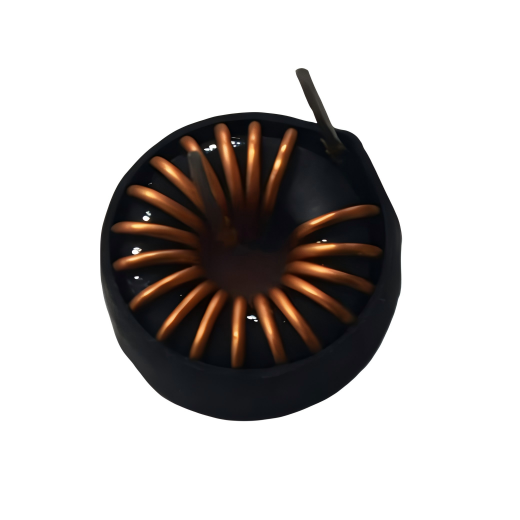

Magnetic inductance real-shot details：
