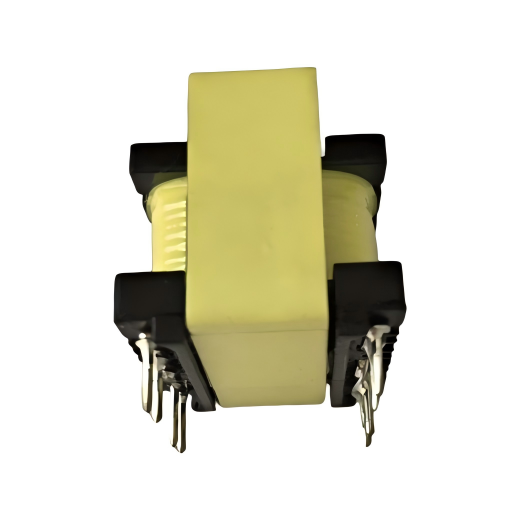

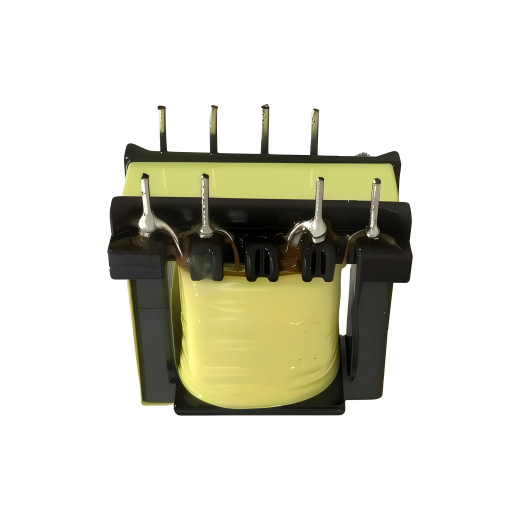

Plug-in EE series High Frequency Transformer
EE28
The EE high-frequency transformer is made of high-quality ferrite cores with precision, including a full range of specifications such as EE8, EE10, EE13, EE16, EE19, EE22, EE25,EE28,etc. It is divided into two installation structures: vertical and horizontal, with small size and simple wiring.
Quantity
The EE Series pin transformerpin transformer is made of high-quality ferrite cores with precision, including a full range of specifications such as EE8, EE10, EE13, EE16, EE19, EE22, EE25, etc,pin type transformer support non-standard customization.It is divided into two installation structures: vertical and horizontal, with small size and simple wiring. It has the characteristics of high-frequency voltage regulation, stable current, and strong insulation, and is suitable for various electronic products such as switching power supplies, LED drivers, chargers, small appliances, smart homes, industrial control power supplies, fast charging power supplies, etc. It meets environmental safety standards and is a commonly used isolation and transformation component in power circuits.
Core advantages of EE smps transformersmps transformer
1. Extremely low loss: The ferrite core has good magnetic conductivity, low heat generation during high-frequency operation, and is energy-saving and durable;
2. Efficient Conversion: High energy conversion rate, reducing the overall energy consumption of the power supply and improving equipment stability;
3. Safe and reliable: multi-layer insulation winding, high voltage resistance, anti breakdown, anti short circuit;
4. Wide adaptability: All models are complete, universal and versatile, suitable for the vast majority of power circuit boards;
5. Solid workmanship: Pure copper enameled wire winding, not easy to break or age, long service life;
6. Fast delivery time: sufficient stock, fast customization and sampling speed, stable large-scale shipment;
7. High cost-effectiveness: Direct supply from the source factory, no intermediary price difference, large quantity and excellent price;
8. Strong environmental adaptability: resistant to high and low temperatures, anti-interference, suitable for various indoor and outdoor electrical scenarios.
Customized Services
1. Customization of specifications: Customize different turns, transformation ratios, input and output voltages;
2. Structural customization: vertical/horizontal, pin length, pin spacing, and output method customization;
3. Power customization: Small power, medium power, and high-power EE transformers can be customized as needed;
4. Material customization: High temperature resistant copper wire, skeleton material, and insulation material selection;
5. Process customization: fully wrapped adhesive, semi wrapped adhesive, flame-retardant insulation, moisture-proof and temperature resistant treatment;
6. Parameter customization: precise adjustment of inductance, leakage inductance, withstand voltage, and temperature rise parameters;
7. Supporting services: free drawing, fast sampling, material processing, OEM manufacturing;
8. Certification customization: Supports production according to safety standards such as RoHS, CQC, UL, etc.
EE series transformer real-shot details：
Company Introduction
Shenzhen CXWON Technology Co., Ltd. was established in 2012. It is a national high-tech enterprise that integrates R&D, production and sales. It has been specializing in the field of electronic transformers for over a decade and complies with international safety standards. The company's products have steadily increased their market share in the domestic market. The factory covers an area of 5,000 square meters and is equipped with first-class facilities and advanced equipment, as well as numerous outstanding professionals.
The company offers over 1,000 different products, specializing in the research and production of high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, ozone high-voltage packs, negative ion generators, power adapters, switching power supplies, and various inductor coils. These products are widely used in household appliances, intelligent control, communication equipment, instruments and meters, security control, industrial control, and many other fields. The company provides high-performance electronic transformers and corresponding solutions to global customers. Its products have passed UL certification and ISO quality management system certification. Some have also obtained safety certifications such as TUV, GS, CE, FCC, and CQC. The quality meets international standards.Over the years, our company has adhered to the principle of"unceasing pursuit of perfect quality and fully meeting customer requirements."This is the company's persistent effort goal and direction.
The company offers over 1,000 different products, specializing in the research and production of high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, ozone high-voltage packs, negative ion generators, power adapters, switching power supplies, and various inductor coils. These products are widely used in household appliances, intelligent control, communication equipment, instruments and meters, security control, industrial control, and many other fields. The company provides high-performance electronic transformers and corresponding solutions to global customers. Its products have passed UL certification and ISO quality management system certification. Some have also obtained safety certifications such as TUV, GS, CE, FCC, and CQC. The quality meets international standards.Over the years, our company has adhered to the principle of"unceasing pursuit of perfect quality and fully meeting customer requirements."This is the company's persistent effort goal and direction.
Typical application scenarios
1. Consumer digital field: fast charging heads for mobile phones, various power adapters, portable power banks, power supply for digital accessories, Bluetooth earphones, and built-in power supplies for small digital products
2. In the field of lighting fixtures: LED driver power supply, strip power supply, ceiling light, table lamp, landscape light, outdoor lighting fixtures with stable voltage supply
3. Household small appliances: fans, humidifiers, wall breaking machines, rice cookers, electric heating products, smart appliances, built-in power supply circuits for kitchen appliances
4. Network security equipment: router, optical modem, set-top box, surveillance camera, access control system, building intercom equipment power supply module
5. Industrial control instruments and equipment: industrial control board, small switch power supply, regulated power supply, detection instrument, temperature measuring instrument, auxiliary power supply for automation equipment
6. Office commercial equipment: printers, attendance machines, cash registers, cash counters, small commercial equipment with built-in transformer power supply
7. In car new energy: car charger, car small appliances, in car central control power supply, low-speed car auxiliary power supply, small portable energy storage devices
8. Other general fields: remote control toys, smart sockets, wireless communication modules, small photovoltaic circuits, outdoor portable power supplies, various isolated voltage reduction and boost circuits
2. In the field of lighting fixtures: LED driver power supply, strip power supply, ceiling light, table lamp, landscape light, outdoor lighting fixtures with stable voltage supply
3. Household small appliances: fans, humidifiers, wall breaking machines, rice cookers, electric heating products, smart appliances, built-in power supply circuits for kitchen appliances
4. Network security equipment: router, optical modem, set-top box, surveillance camera, access control system, building intercom equipment power supply module
5. Industrial control instruments and equipment: industrial control board, small switch power supply, regulated power supply, detection instrument, temperature measuring instrument, auxiliary power supply for automation equipment
6. Office commercial equipment: printers, attendance machines, cash registers, cash counters, small commercial equipment with built-in transformer power supply
7. In car new energy: car charger, car small appliances, in car central control power supply, low-speed car auxiliary power supply, small portable energy storage devices
8. Other general fields: remote control toys, smart sockets, wireless communication modules, small photovoltaic circuits, outdoor portable power supplies, various isolated voltage reduction and boost circuits
Flowchart
FAQ
1：About the product
Due to the fact that transformers are customized products with different parameters, please be sure to contact us before placing an order to confirm the parameters, dimensions, delivery time, and other information. The above is a large series of products, with specific models, pins, sizes, and other parameters. Please contact us first for personalized customization.
2： Regarding shipping fees
Due to the fact that this product is a customized product, the specifications required by each customer may vary, resulting in unpredictable shipping costs. The actual shipping costs are subject to confirmation.
3： Regarding Payment
Our company can provide samples for free, and customers need to pay for shipping fees. Batch production requires a 30% deposit, and our company will arrange production; The customer pays the final payment, and our company arranges for shipment. Long term stable cooperative relationship, subject to negotiation between both parties.
4： About Price
This product is an ordered item and requires careful communication between the buyer and seller to confirm the material, specifications, order quantity, transportation method, payment method, and other relevant information of the ordered product! The quotation confirmed by both parties' signatures and seals shall prevail.
5： Regarding Quality
Our company has always adhered to the principle of quality first to serve all buyers. Please rest assured of the quality! And in online transactions, credit comes first! Once there is a quality issue, our company will provide returns and exchanges. Buyers don't have to worry about no guarantee after purchasing the product!
6： Buyers must read
When receiving, please carefully check whether the packaging is intact. If there are any damages, missing items, quality problems, etc. after unpacking, please contact us in a timely manner and we will do our best to solve them.
