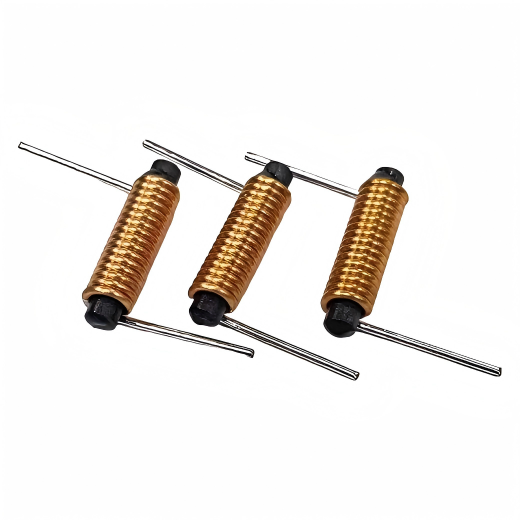

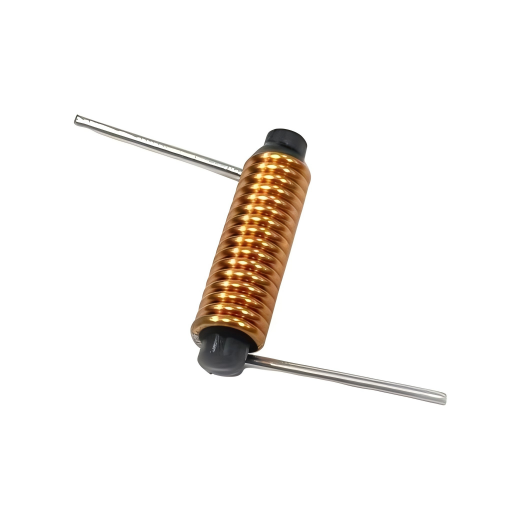

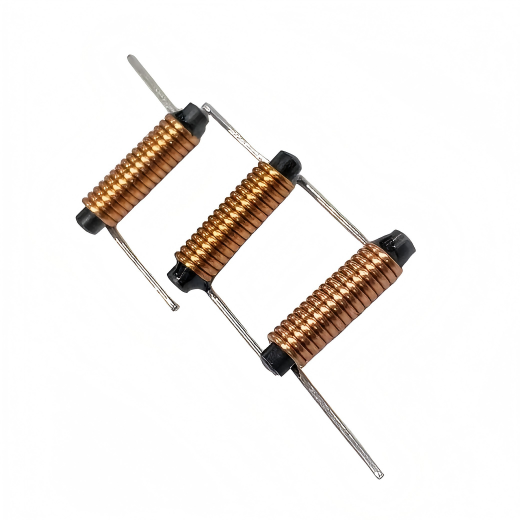

R rod series high-frequency horizontal wire wound inductor
R3*18
R type inductive component adopting a closed rod shaped winding and a double line symmetrical winding design, it has low leakage magnetic flux, high inductance, and strong anti-interference characteristics.
Quantity
R type inductive component adopting a closed rod shaped winding and enameled copper magnet wire a double line symmetrical winding design, it has low leakage magnetic flux, high inductance, and strong anti-interference characteristics. It is widely used in EMI filtering circuits for switching power supplies, adapters, and household appliances, effectively suppressing common mode noise and ensuring stable circuit operation. Support customization based on inductance, rated current, wire diameter, and lead specifications to meet the EMC certification requirements of various power supplies.
Core advantages of Magnetic ferrite core inductance
1. Ultra low magnetic leakage, strong anti-interference ability
Adopting a circular closed magnetic circuit design, the magnetic field does not leak out, the leakage magnetic pole is low, the filtering effect is good, and the high-frequency common mode interference and EMI clutter are effectively suppressed. The equipment is less likely to interfere, does not explode, and works more stably.
2. Low frequency loss, low temperature rise, and minimal heat generation
High quality ferrite core material, good high-frequency performance, low magnetic loss, low operating temperature under full load for a long time, no overheating or aging, and longer service life.
3. Good insulation, meeting safety standards for greater safety
Double line symmetrical winding, strengthened insulation sleeve protection, sufficient creepage distance, strong voltage resistance, meets various power safety certification requirements, safe and reliable.
4. Compact size, space saving installation
The circular structure is compact and small, occupying no PCB space, suitable for miniaturized power supplies, ultra-thin devices, and dense circuit board layouts, and easy to install.
5. Stable performance, silent and vibration free
The magnetic core structure is compact, with no noise or vibration during operation, clean filtering, and silent operation of the equipment without any abnormal noise.
6. Strong universality and wide applicability
Adapt to switch mode power supplies, adapters, industrial control, household appliances LED、 The vast majority of power equipment, such as new energy, have strong universality and high cost-effectiveness.
7. Support on-demand customization
We can customize inductance, current size, wire diameter, lead length, and winding process to fit the circuit parameters of our customers' products and provide tailored matching.
Customized Services
1. Parameter customization
Customizable inductance, rated current, wire diameter, number of turns, winding method, suitable for high-frequency filtering and anti-interference circuits.
2. Customization of size specifications
Multiple sizes of ferrite cores are available, with customized inner and outer diameters and thicknesses to meet different installation spaces.
3. Customization of leads
Customize lead length, wire diameter, color, and sleeve insulation to enhance voltage resistance and creepage distance, in compliance with safety regulations.
4. Process customization
Pure copper winding, double-layer insulation, painted reinforcement, moisture-proof and dust-proof treatment, enhance stability and service life.
5. Function customization
Customization of single winding and double winding common mode structures to enhance EMI filtering, noise reduction, and suppression of common mode interference.
6. One stop service
Free selection, fast sampling, mass production, strict quality control, and full technical support throughout the process.
Inductor toroidal real-shot details：
Company Introduction
Shenzhen CXWON Technology Co., Ltd. is a trustworthy enterprise integrating R&D, production and sales. It specializes in manufacturing various types of inductors such as high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, negative ion generators, ozone high-voltage packages, mosquito-killing lamps, UV lamp power supplies, etc. Our products are widely used in household appliances, intelligent control, medical fitness equipment, communication devices, instruments and meters, security control, industrial control, ozone negative ion generators, energy conservation and environmental protection, etc. Some of our products have obtained safety certifications such as UL, TUV, GS, CE, FCC, CQC, etc.
Typical application scenarios
1. Home appliances and smart homes
Household appliances, intelligent control boards, LED driver power supplies, lighting fixtures, small household appliance control circuits
2. Industrial control equipment
Industrial control power supply, frequency converter, servo equipment, instrumentation, medical electronics, automation equipment
3. Communication and Security
Router, set-top box, monitoring power supply, communication equipment, network terminal equipment
4. In the field of new energy
Photovoltaic inverter, energy storage power supply, charging station module, new energy control circuit board
5. Function of General Circuit
Mainly used for common mode filtering, EMI anti-interference, high-frequency noise reduction, circuit voltage stabilization and isolation, to solve equipment electromagnetic interference, noise, and signal instability problems
6. Switching power supply category
Switching power supply, power adapter, fast charging charger, car power supply, DC stabilized power supply
Flowchart
FAQ
Q1: What types of magnetic components can you customize?
A: We offer complete OEM and ODM services for high-frequency transformers, low-frequency power transformers, common-mode inductors, power inductors, ring coils, flat wire inductors, filter reactors, and multi-winding coils. Support through through-hole/solder pad (SMD), vertical/horizontal installation, optional EE/EI/PQ, ring ferrite or silicon steel core. Widely used in switching power supplies, new energy chargers, industrial control, medical equipment, and solar inverters, etc.
Q2: What technical parameters need to be provided when making the quotation?
A: You can provide electrical parameters (inductance value mH/uH, DCR, Isat, turns ratio, operating frequency, withstand voltage value), size drawings, physical samples, operating temperature range, environmental requirements, and annual order quantity. If only the application scenario is provided without the complete specifications, our engineers will design a solution for you for free.
Q3: Can I customize the inductance value, DC resistance (DCR), leakage inductance and insulation voltage?
A: All electrical parameters can be adjusted. We offer inductance tolerances of ±5%, ±10%, and ±20%; we use multi-strand Litz wire to reduce DC resistance and heat generation; we control leakage inductance for high-frequency transformers; the insulation withstand voltage can be selected from 1kV to 5kV.
Q4: Can I customize the pin type, wire length and installation structure?
A: Yes. We support vertical/horizontal through-hole, SMD base, extended leads, custom wire color, insulating sleeves, vacuum impregnation, epoxy resin casting, metal shielding casings, and customer-specific part number silk-screening, etc.
Q5: Will the unit price be lower if the order quantity is larger?
A: We use a tiered pricing approach. The larger the order quantity, the lower the raw material costs for the cores and wires, and thus the unit price decreases accordingly. Long-term cooperative customers can enjoy additional annual discounts.
Q6: If I only have the requirements for the equipment application, can you provide the design drawings?
A: We offer free development services for magnetic component solutions. Our engineers will generate circuit diagrams, winding specifications and size drawings based on the power, frequency and size limitations of the equipment. After confirmation, samples will be produced.
Q7: What tests will be conducted before shipment? Can test reports be provided?
A: 100% comprehensive inspections will be carried out for inductance, DC resistance, withstand voltage, on-off capability and appearance; sampling inspections will be conducted for aging, high and low temperature cycling, salt spray, and vibration. Corresponding quality inspection reports for each batch of goods can be attached. The complete inspection data for long-term cooperative customers will be archived for a long time.
Q8: Can I choose different magnetic core materials?
A: All series of magnetic core materials can be selected: manganese-zinc ferrite and nickel-zinc materials are suitable for high-frequency scenarios; iron-silicon-aluminum and iron powder cores are used for large current inductors; cold-rolled silicon steel sheets are used for low-frequency transformers. We will select the optimal magnetic core based on loss, current, and usage frequency requirements.
