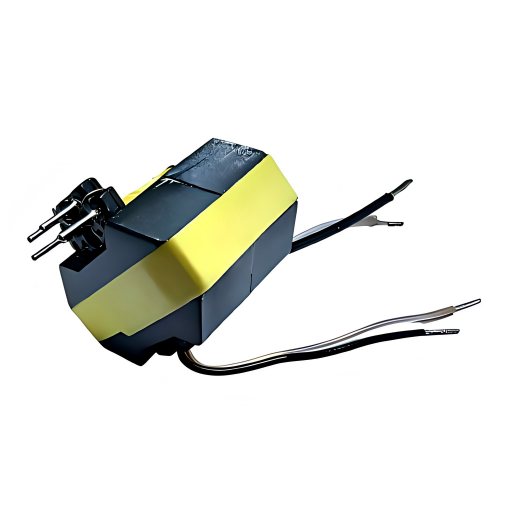

RM type high frequency flyback transformer
RM6
RM type high frequency flyback transformer adopts RM type high-frequency low loss ferrite core and dedicated skeleton, specially designed for optimized design of small and medium power switching power supplies.
Quantity
RM type high frequency flyback transformer adopts RM type high-frequency low loss ferrite core and dedicated skeleton, specially designed for optimized design of small and medium power switching power supplies. With its unique symmetrical magnetic circuit structure, it has the characteristics of low leakage inductance, high efficiency, good heat dissipation performance, and low EMI interference, which can achieve stable voltage conversion and electrical isolation. Supports direct insertion/patch packaging, compact pin layout, suitable for high-density pcb transformer, circuit board transformer, widely used in power adapters, fast charging chargers, LED drivers, industrial control equipment and other scenarios, providing efficient energy conversion support for various lightweight and high reliability power solutions.
Core advantages of the RM type PCB installation transformer
1. Compact size and high power density
RM circular center column compact structure, high space utilization, smaller volume under the same power, suitable for lightweight and miniaturized power equipment, saving PCB installation space.
2. Low leakage inductance and minimal EMI interference
The magnetic circuit design is reasonable, with less magnetic leakage, low distributed capacitance, weak high-frequency interference, making it easier to pass EMC electromagnetic compatibility certification and more stable circuit operation.
3. Low temperature rise and high conversion efficiency
Paired with high-frequency and low loss ferrite cores, it has low magnetic and copper losses, low heat generation, stable long-term full load operation, and is energy-saving and durable.
4. Good insulation and high safety rating
The spacing between the skeleton structures is reasonable, the creepage distance is sufficient, the insulation strength is excellent, the voltage resistance is strong, and it is compatible with multiple national safety standards.
5. Strong adaptability and wide applicability
Suitable for various high-frequency circuits such as flyback and LLC, widely used in chargers, adapters, LED drivers, smart homes, and small industrial control power supplies.
6. Stable structure and flexible customization
The winding structure is compact and not easy to loosen, supporting customized pins, turns, inductors, sizes, and packaging methods according to needs, with fast sampling and stable mass production.
RM circular center column compact structure, high space utilization, smaller volume under the same power, suitable for lightweight and miniaturized power equipment, saving PCB installation space.
2. Low leakage inductance and minimal EMI interference
The magnetic circuit design is reasonable, with less magnetic leakage, low distributed capacitance, weak high-frequency interference, making it easier to pass EMC electromagnetic compatibility certification and more stable circuit operation.
3. Low temperature rise and high conversion efficiency
Paired with high-frequency and low loss ferrite cores, it has low magnetic and copper losses, low heat generation, stable long-term full load operation, and is energy-saving and durable.
4. Good insulation and high safety rating
The spacing between the skeleton structures is reasonable, the creepage distance is sufficient, the insulation strength is excellent, the voltage resistance is strong, and it is compatible with multiple national safety standards.
5. Strong adaptability and wide applicability
Suitable for various high-frequency circuits such as flyback and LLC, widely used in chargers, adapters, LED drivers, smart homes, and small industrial control power supplies.
6. Stable structure and flexible customization
The winding structure is compact and not easy to loosen, supporting customized pins, turns, inductors, sizes, and packaging methods according to needs, with fast sampling and stable mass production.
Customized Services
1. Customize core parameters as needed
We can customize key parameters such as turns ratio, voltage ratio, operating frequency, and multiple winding according to your circuit topology, power level, and input/output requirements, and adapt to various switching power topologies such as flyback and LLC, perfectly matching adapters, chargers, LED drivers, and other scenarios.
2. A full range of magnetic cores and packaging options are available
Covering mainstream RM series magnetic cores such as RM8/RM10/RM12, we offer various packaging forms such as vertical/horizontal direct insertion and surface mount (SMD). We can optimize the size, pin layout, and creepage distance according to PCB layout to meet space constraints and safety requirements.
3. Optimize materials and processes as needed
Optional all copper windings, materials of different insulation levels, support insulation tape wrapping or epoxy resin encapsulation process, improve insulation strength, heat dissipation performance and anti-interference ability as needed, and can cooperate with customers to complete UL/CE/ROHS and other safety certifications.
4. Fast prototyping and stable delivery
Support rapid sample making, small batch trial production to large-scale production, and complete incoming inspection, process control, and finished product inspection processes to ensure consistency and stability of each batch of products. At the same time, provide flexible delivery plans to ensure project progress.
5. Full process technical support to reduce research and development costs
Our professional engineering team follows up throughout the entire process, providing professional advice on magnetic core selection, winding optimization, safety design, and other aspects from the design stage, solving your technical problems in power supply design and helping to quickly implement efficient power supply solutions.
We can customize key parameters such as turns ratio, voltage ratio, operating frequency, and multiple winding according to your circuit topology, power level, and input/output requirements, and adapt to various switching power topologies such as flyback and LLC, perfectly matching adapters, chargers, LED drivers, and other scenarios.
2. A full range of magnetic cores and packaging options are available
Covering mainstream RM series magnetic cores such as RM8/RM10/RM12, we offer various packaging forms such as vertical/horizontal direct insertion and surface mount (SMD). We can optimize the size, pin layout, and creepage distance according to PCB layout to meet space constraints and safety requirements.
3. Optimize materials and processes as needed
Optional all copper windings, materials of different insulation levels, support insulation tape wrapping or epoxy resin encapsulation process, improve insulation strength, heat dissipation performance and anti-interference ability as needed, and can cooperate with customers to complete UL/CE/ROHS and other safety certifications.
4. Fast prototyping and stable delivery
Support rapid sample making, small batch trial production to large-scale production, and complete incoming inspection, process control, and finished product inspection processes to ensure consistency and stability of each batch of products. At the same time, provide flexible delivery plans to ensure project progress.
5. Full process technical support to reduce research and development costs
Our professional engineering team follows up throughout the entire process, providing professional advice on magnetic core selection, winding optimization, safety design, and other aspects from the design stage, solving your technical problems in power supply design and helping to quickly implement efficient power supply solutions.

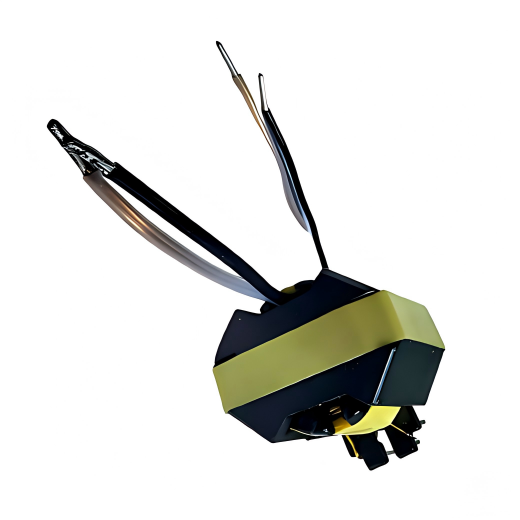

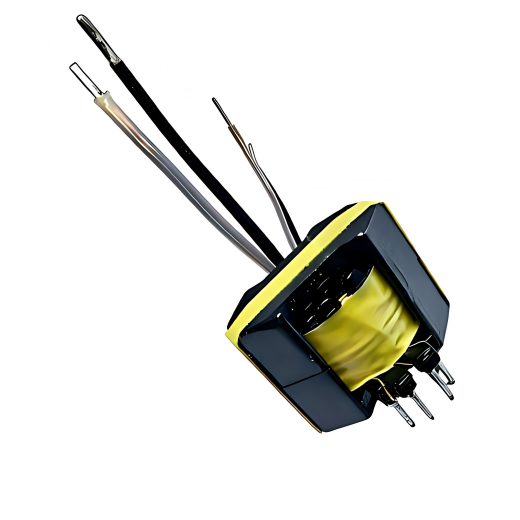

RM6 High frequency transformer for household appliances real-shot details：
Company Introduction
Shenzhen CXWON Technology Co., Ltd. was established in 2012. It is a national high-tech enterprise that integrates R&D, production and sales. It has been specializing in the field of electronic transformers for over a decade and complies with international safety standards. The company's products have steadily increased their market share in the domestic market. The factory covers an area of 5,000 square meters and is equipped with first-class facilities and advanced equipment, as well as numerous outstanding professionals.
The company offers over 1,000 different products, specializing in the research and production of high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, ozone high-voltage packs, negative ion generators, power adapters, switching power supplies, and various inductor coils. These products are widely used in household appliances, intelligent control, communication equipment, instruments and meters, security control, industrial control, and many other fields. The company provides high-performance electronic transformers and corresponding solutions to global customers. Its products have passed UL certification and ISO quality management system certification. Some have also obtained safety certifications such as TUV, GS, CE, FCC, and CQC. The quality meets international standards.
Over the years, our company has adhered to the principle of"unceasing pursuit of perfect quality and fully meeting customer requirements."This is the company's persistent effort goal and direction.
The company offers over 1,000 different products, specializing in the research and production of high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, ozone high-voltage packs, negative ion generators, power adapters, switching power supplies, and various inductor coils. These products are widely used in household appliances, intelligent control, communication equipment, instruments and meters, security control, industrial control, and many other fields. The company provides high-performance electronic transformers and corresponding solutions to global customers. Its products have passed UL certification and ISO quality management system certification. Some have also obtained safety certifications such as TUV, GS, CE, FCC, and CQC. The quality meets international standards.
Over the years, our company has adhered to the principle of"unceasing pursuit of perfect quality and fully meeting customer requirements."This is the company's persistent effort goal and direction.
Typical application scenarios
This RM6 AC power conversion transformer is widely used in various small AC power supply devices. Practical scenarios include:
Low power switch power adapter, mobile phone/small appliance charger (5W~15W level)
Low power LED driver power supply, built-in power supply for smart home devices
Small power modules for industrial control boards and instruments
DC-DC converter, power supply for automotive electronic devices
Consumer electronics and portable device power supplies with strict requirements for volume and EMI
Low power LED driver power supply, built-in power supply for smart home devices
Small power modules for industrial control boards and instruments
DC-DC converter, power supply for automotive electronic devices
Consumer electronics and portable device power supplies with strict requirements for volume and EMI

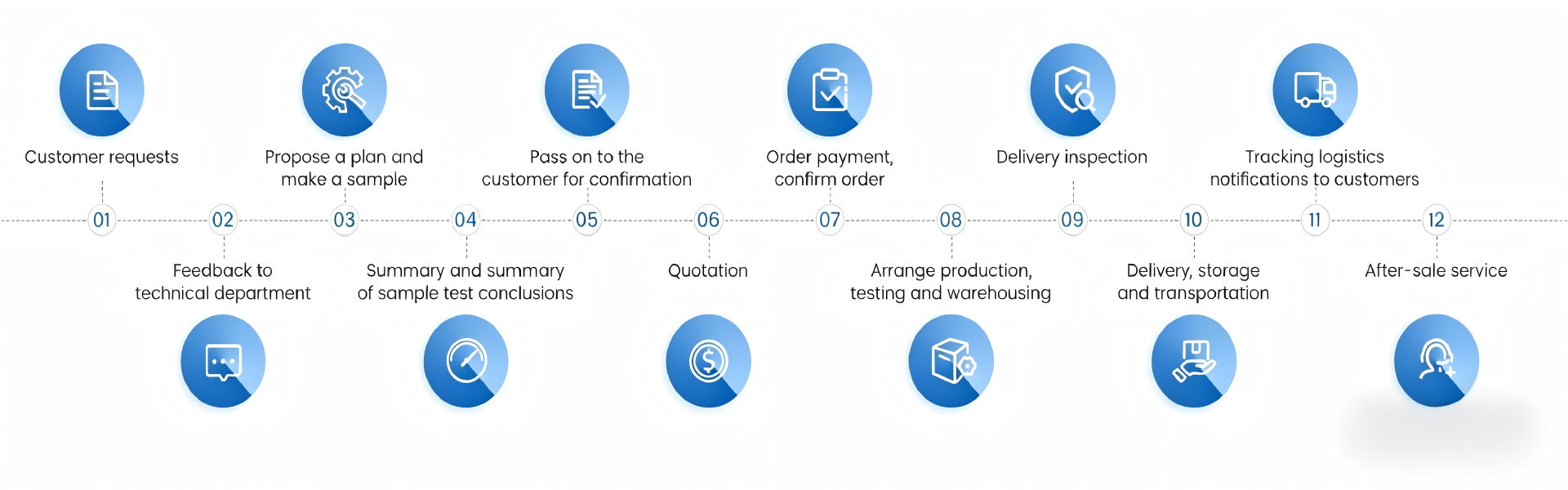

Flowchart
