Vertical common mode filter surface mount inductor 50MH UU series
UU9.8
It is a pcb inductor designed with UU type magnetic core structure.
Quantity
It is a pcb inductor designed with UU type magnetic core structure. It is a pure copper wire winding inductor core,core component for suppressing EMI electromagnetic interference in power circuits of switching power supplies, household appliances, and industrial equipment. With its excellent filtering performance, high reliability, and high cost-effectiveness, it is widely used in various low and medium power supply scenarios.
Core advantages of Surface mount inductor
1. High common mode rejection ratio, excellent EMI filtering effect
The symmetrical structure of UU type magnetic core significantly reduces winding leakage inductance and has a significant attenuation effect on high-frequency common mode noise, which can help the product easily pass EMC electromagnetic compatibility certification and improve the overall anti-interference performance of the equipment.
2. Low differential mode loss, does not affect circuit efficiency
The differential mode signal of normal operating current presents low impedance, which will not cause additional voltage drop and loss, ensuring the efficiency of the power circuit and adapting to energy-saving power supply design.
3. High insulation level, safe and reliable
The skeleton is made of flame-retardant and high-temperature resistant plastic material, and the insulation treatment between winding layers is complete. The insulation level meets the safety requirements of household appliances and industrial control equipment, effectively avoiding the risks of leakage and breakdown.
4. Stable structure and strong environmental adaptability
The injection molding skeleton+immersion paint reinforcement process has excellent seismic, temperature and moisture resistance, and is suitable for long-term continuous working scenarios such as household appliances and industrial equipment, with a long service life.
5. Wide applicability and high cost-effectiveness
The inductance and current level specifications are complete, suitable for various low and medium power supply circuits, with good consistency in mass production and significant cost advantages. It is the preferred solution for mass production power supply projects.
Customized Services
1. Customization of electrical parameters
Customizable input and output voltage, turn ratio, power, inductance, leakage inductance, and resistance parameters to accurately match customer power solutions.
2. Customization of structure and pins
Customize the number of pins, pin spacing, installation size, skeleton specifications, and adapt to PCB board openings and installation layouts.
3. Customized winding process
Adjustable wire diameter, winding method, and outlet position, increased shielding winding to reduce interference and meet EMC design requirements.
4. Material and temperature resistance customization
Optional high-temperature resistant wires and thickened insulation materials can be used to enhance temperature resistance and voltage resistance, adapting to complex environments with high and low temperatures.
5. Customization of appearance and craftsmanship
Insulation tape, immersion paint, and sealing processes are optional, with moisture-proof, shockproof, dust-proof reinforcement to enhance product service life.
6. OEM/ODM one-stop customization
Support collaborative development of drawings, samples, and solutions, rapid prototyping, small batch trial production+large-scale production, stable delivery time, and the ability to print customer models and logos.

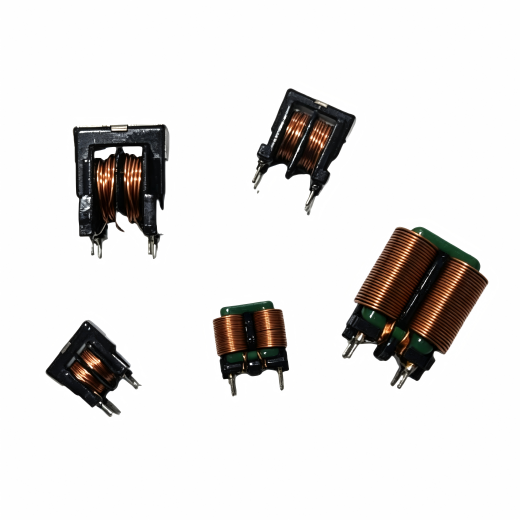

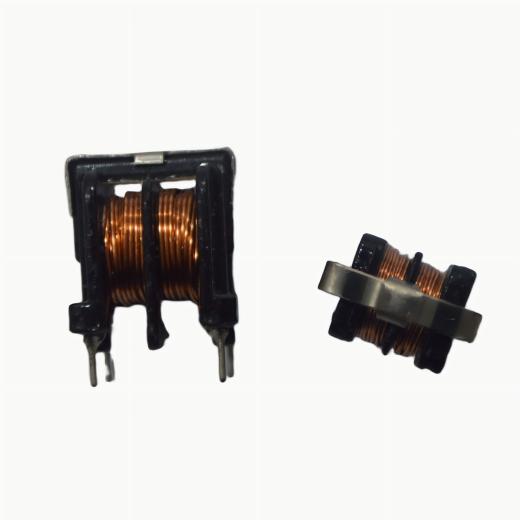

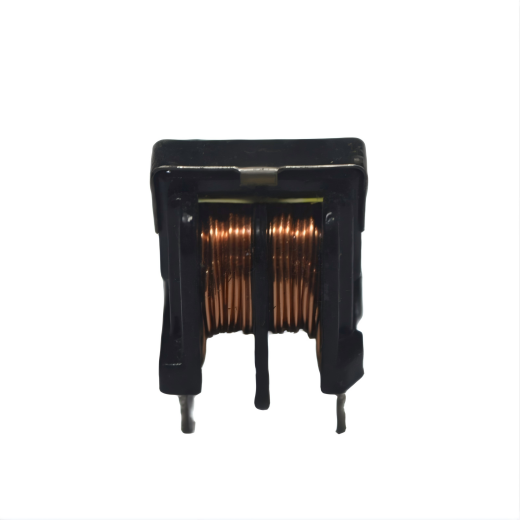

Inductor real-shot details：
Company Introduction
Shenzhen CXWON Technology Co., Ltd. was established in 2012. It is a national high-tech enterprise that integrates R&D, production and sales. It has been specializing in the field of electronic transformers for over a decade and complies with international safety standards. The company's products have steadily increased their market share in the domestic market. The factory covers an area of 5,000 square meters and is equipped with first-class facilities and advanced equipment, as well as numerous outstanding professionals.
The company offers over 1,000 different products, specializing in the research and production of high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, ozone high-voltage packs, negative ion generators, power adapters, switching power supplies, and various inductor coils. These products are widely used in household appliances, intelligent control, communication equipment, instruments and meters, security control, industrial control, and many other fields. The company provides high-performance electronic transformers and corresponding solutions to global customers. Its products have passed UL certification and ISO quality management system certification. Some have also obtained safety certifications such as TUV, GS, CE, FCC, and CQC. The quality meets international standards.
Over the years, our company has adhered to the principle of"unceasing pursuit of perfect quality and fully meeting customer requirements."This is the company's persistent effort goal and direction.
The company offers over 1,000 different products, specializing in the research and production of high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, ozone high-voltage packs, negative ion generators, power adapters, switching power supplies, and various inductor coils. These products are widely used in household appliances, intelligent control, communication equipment, instruments and meters, security control, industrial control, and many other fields. The company provides high-performance electronic transformers and corresponding solutions to global customers. Its products have passed UL certification and ISO quality management system certification. Some have also obtained safety certifications such as TUV, GS, CE, FCC, and CQC. The quality meets international standards.
Over the years, our company has adhered to the principle of"unceasing pursuit of perfect quality and fully meeting customer requirements."This is the company's persistent effort goal and direction.
Typical application scenarios
1. Switching power supply and adapter: AC input terminals for mobile phone/laptop chargers, power adapters, LED driver power supplies, filtering out grid noise;
2. Home appliances: power boards for televisions, air conditioners, washing machines, refrigerators, and other household appliances to enhance the overall anti-interference ability and avoid signal abnormalities;
3. Industrial control equipment: Input filtering circuits for industrial control power supplies, frequency converters, and sensor power supplies to ensure stable operation of the equipment;
4. Communication and security equipment: power ports for routers, optical modems, and monitoring devices to suppress the impact of interference on signal transmission;
5. Small household appliances and consumer electronics: power circuits for products such as induction cookers, rice cookers, and smart sockets that meet basic anti-interference requirements.

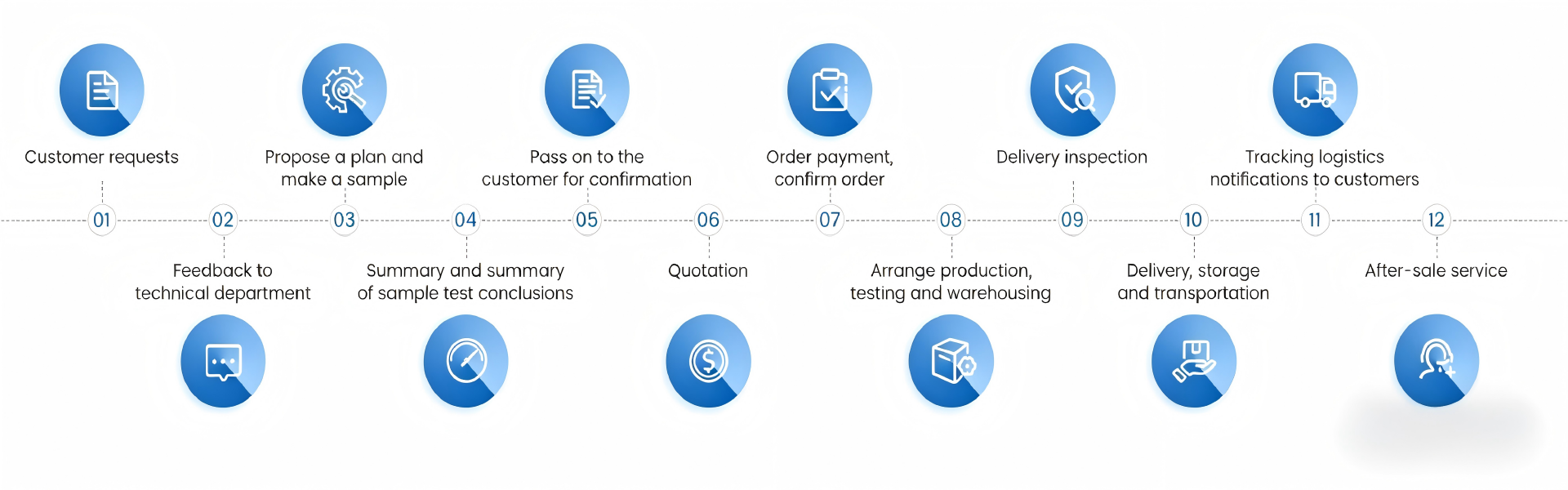

Flowchart
