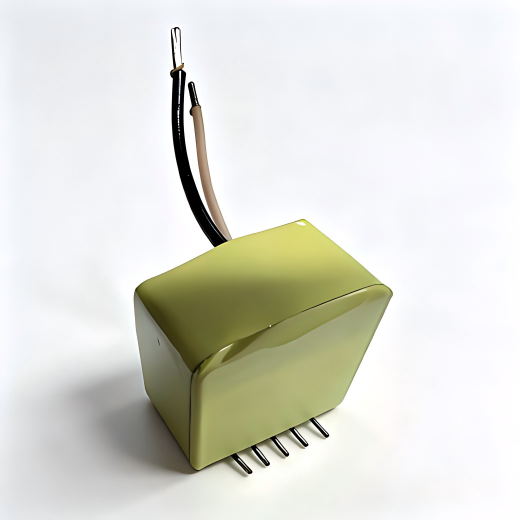

Vertical switching power supply transformer Gallium nitride chargers
ATQ27
Vertical Switch mode transformer It is a typical high-frequency for switching power supply transformer . Its operating frequency is usually above several tens of kHz and is not a low-frequency power supply transformer.
Quantity
Vertical Switch mode transformer It is a typical high-frequency for switching power supply transformer . Its operating frequency is usually above several tens of kHz and is not a low-frequency power supply transformer. The core function is to achieve voltage transformation, electrical isolation, and energy transfer in the switching power supply. It is a key component of power adapters, chargers, and DC-DC modules. The advantage of its lead design is to be suitable for smps transformer winding, which can effectively increase the insulation distance and enhance safety. It is commonly found in small-power switching power supplies.
Core advantages of the Vertical high frequency transformer
1. Compact size and high power density
The working frequency is much higher than the power frequency (usually tens of kHz~hundreds of kHz). At the same power, the volume of the magnetic core and the number of winding turns are greatly reduced, and the product size is smaller and lighter, suitable for lightweight and miniaturized electronic devices.
2. High efficiency and low loss
By using high-frequency low loss magnetic cores (such as ferrites) and optimizing the winding design, the core loss and copper loss are significantly reduced, resulting in higher conversion efficiency and less heat generation, making it suitable for long-term stable operation.
3. Flexible voltage regulation and good voltage stabilization performance
Combined with the switch power supply circuit, it can achieve wide range input voltage regulation, high output voltage stability, small ripple, and meet the power supply needs of various precision electronic devices.
4. Electrical isolation is safe and reliable
The primary and secondary windings are isolated by insulation materials, which can achieve high voltage resistance levels, effectively isolate the high voltage side from the low voltage side, improve the safety of equipment and users, and suppress interference.
5. Adapt to modern switch mode power supply architecture
Specially designed for switch mode power supplies, it can be combined with PWM control to achieve efficient energy conversion. It is widely used in modern electronic devices such as power adapters, chargers, LED drivers, and industrial control power supplies, and is the core component of miniaturized power solutions.
6. High flexibility in cost control and customization
Standardized high-frequency magnetic cores and mature processes can achieve cost optimization in large-scale production; Simultaneously supporting customization of different turn ratios, power levels, and packaging forms (such as with leads, surface mount, and direct insertion) to meet the circuit requirements of different customers.
The working frequency is much higher than the power frequency (usually tens of kHz~hundreds of kHz). At the same power, the volume of the magnetic core and the number of winding turns are greatly reduced, and the product size is smaller and lighter, suitable for lightweight and miniaturized electronic devices.
2. High efficiency and low loss
By using high-frequency low loss magnetic cores (such as ferrites) and optimizing the winding design, the core loss and copper loss are significantly reduced, resulting in higher conversion efficiency and less heat generation, making it suitable for long-term stable operation.
3. Flexible voltage regulation and good voltage stabilization performance
Combined with the switch power supply circuit, it can achieve wide range input voltage regulation, high output voltage stability, small ripple, and meet the power supply needs of various precision electronic devices.
4. Electrical isolation is safe and reliable
The primary and secondary windings are isolated by insulation materials, which can achieve high voltage resistance levels, effectively isolate the high voltage side from the low voltage side, improve the safety of equipment and users, and suppress interference.
5. Adapt to modern switch mode power supply architecture
Specially designed for switch mode power supplies, it can be combined with PWM control to achieve efficient energy conversion. It is widely used in modern electronic devices such as power adapters, chargers, LED drivers, and industrial control power supplies, and is the core component of miniaturized power solutions.
6. High flexibility in cost control and customization
Standardized high-frequency magnetic cores and mature processes can achieve cost optimization in large-scale production; Simultaneously supporting customization of different turn ratios, power levels, and packaging forms (such as with leads, surface mount, and direct insertion) to meet the circuit requirements of different customers.
Customized Services
1.Customize parameters as needed
Support customization of core parameters such as input/output voltage, turns ratio, power level, operating frequency, etc. according to customer circuit requirements, to adapt to different application scenarios such as switching power supplies, adapters, LED drivers, etc.
2.Diversified packaging and structure
We can provide various packaging forms such as vertical/horizontal direct insertion, surface mount (SMD), and with leads, supporting different size specifications (such as EE/EI/EF/ETD series magnetic cores) to meet different PCB layouts and space limitations.
3.Customization of materials and processes
Optional copper windings, materials with different insulation levels, epoxy resin encapsulation or tape wrapping processes can be used to achieve high insulation, low loss, high voltage resistance and other performance indicators as needed, meeting safety certification requirements.
4.Quick prototyping and bulk delivery
Support rapid sample making, small batch trial production to large-scale production, and complete quality control processes to ensure product consistency and stability, while providing flexible delivery plans.
5.Full process technical support
A team of professional engineers will follow up throughout the entire process, providing advice on magnetic core selection, winding optimization, and safety design from the scheme design stage, to solve various technical problems in your power supply design.

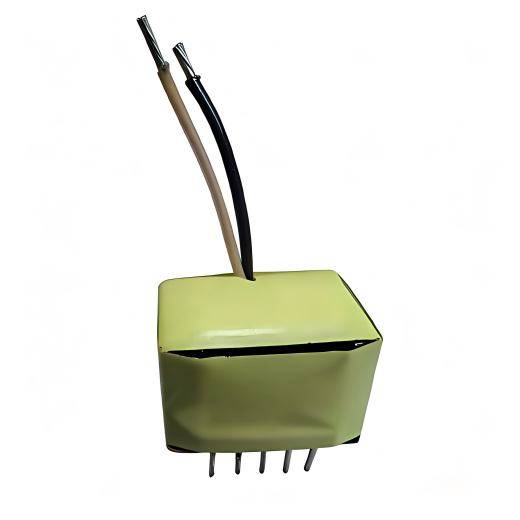

Vertical high frequency transformer real-shot details：
Company Introduction
Shenzhen CXWON Technology Co., Ltd. was established in 2012. It is a national high-tech enterprise that integrates R&D, production and sales. It has been specializing in the field of electronic transformers for over a decade and complies with international safety standards. The company's products have steadily increased their market share in the domestic market. The factory covers an area of 5,000 square meters and is equipped with first-class facilities and advanced equipment, as well as numerous outstanding professionals.
The company offers over 1,000 different products, specializing in the research and production of high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, ozone high-voltage packs, negative ion generators, power adapters, switching power supplies, and various inductor coils. These products are widely used in household appliances, intelligent control, communication equipment, instruments and meters, security control, industrial control, and many other fields. The company provides high-performance electronic transformers and corresponding solutions to global customers. Its products have passed UL certification and ISO quality management system certification. Some have also obtained safety certifications such as TUV, GS, CE, FCC, and CQC. The quality meets international standards.
Over the years, our company has adhered to the principle of"unceasing pursuit of perfect quality and fully meeting customer requirements."This is the company's persistent effort goal and direction.
The company offers over 1,000 different products, specializing in the research and production of high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, ozone high-voltage packs, negative ion generators, power adapters, switching power supplies, and various inductor coils. These products are widely used in household appliances, intelligent control, communication equipment, instruments and meters, security control, industrial control, and many other fields. The company provides high-performance electronic transformers and corresponding solutions to global customers. Its products have passed UL certification and ISO quality management system certification. Some have also obtained safety certifications such as TUV, GS, CE, FCC, and CQC. The quality meets international standards.
Over the years, our company has adhered to the principle of"unceasing pursuit of perfect quality and fully meeting customer requirements."This is the company's persistent effort goal and direction.
Typical application scenarios
ThisTransformer with leads is widely used in various small AC power supply devices. Practical scenarios include:
1. Various power adapters and chargers (for mobile phones, small household appliances, LED driving power supplies)
2. Switching power modules, DC-DC converters
3. Power sections of industrial control equipment and household control boards
4. Power circuits requiring isolation between the high-voltage side and the low-voltage side
1. Various power adapters and chargers (for mobile phones, small household appliances, LED driving power supplies)
2. Switching power modules, DC-DC converters
3. Power sections of industrial control equipment and household control boards
4. Power circuits requiring isolation between the high-voltage side and the low-voltage side

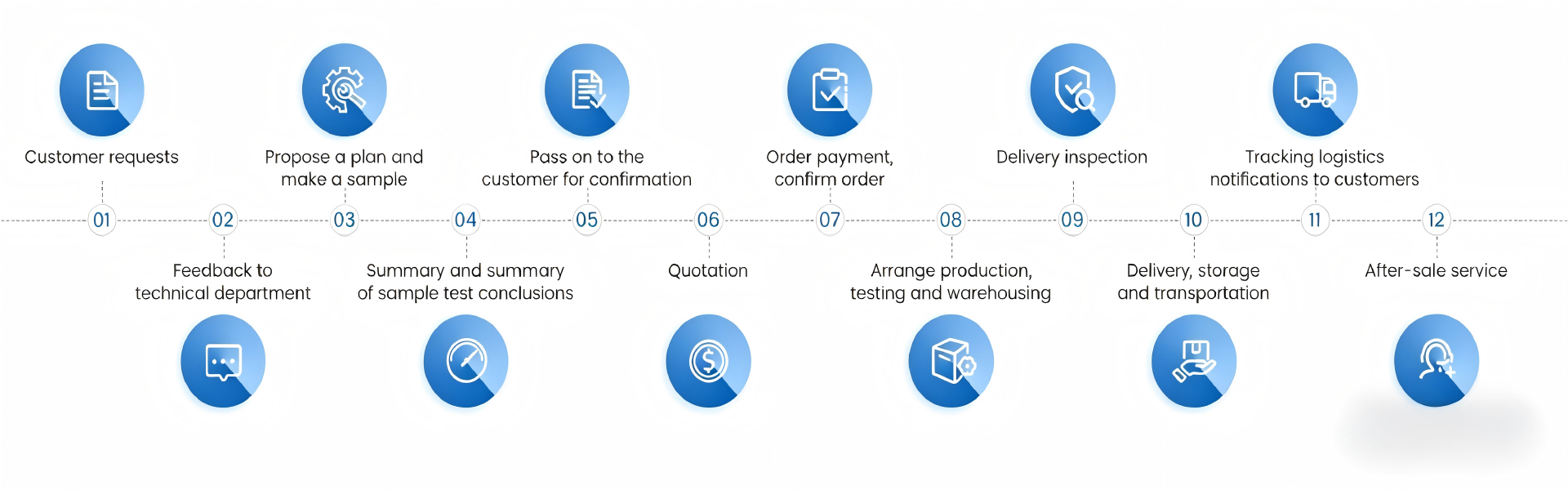

Flowchart
