Direct insert wound power inductor smd coil inductor DR Series Booster Circuit Coil



        It is equipped with two sets of windings and is connected in a three-legged manner. A single inductor can achieve step-up conversion. It is compact in size and can be installed in a vertical manner using a PCB. It is suitable for small power step-up circuits, alarm buzzers, gas alarms, control boards for small household appliances, LED flashing drivers, and other scenarios.



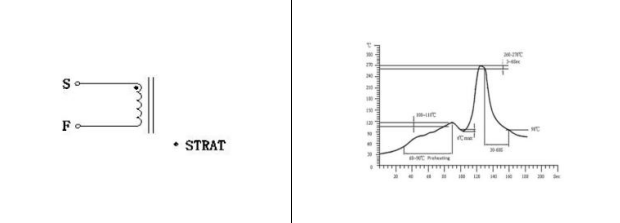

Product parameters

Core material	Ferrite core	Q value	Typicl value ≈ 50
Core shape	Drum shape	Operating frequency	Medium-high frequency
Winding structure	Single winding (outlets at both ends);	Operating temperature range	-40℃ ～ +125℃
Inductance range	0.1mH ～ 3mH	Storage temperature	-25℃ ～ +85℃
Inductance tolerance	±10%	Storage humidity	30% ～ 95% RH
Rated current	1mA ～ 100mA	Brand	CXWON



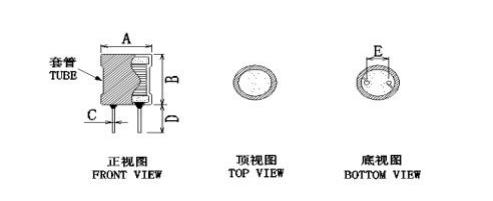

Common models



Core advantages of Inductor

1. DR4*10 small I-beam ferrite core, 3-pin dual-winding integrated design, one component realizes the boost function
2. Yellow epoxy resin fully encapsulated, dust-proof and moisture-proof, the coil is not prone to loosen, and resistant to vibration
3. Vertical plug-in structure, simple installation, compatible with automatic plug-in machines, improving assembly efficiency
4. Manganese-zinc ferrite core has good high-frequency characteristics and stable boost conversion
5. Oxygen-free pure copper enameled wire winding, low internal resistance, low heat generation, stable boost efficiency



Flowchart

Why choose us

Q: What are the differences between the three-pin DR4*10 H-beam inductor and the ordinary two-pin H-beam inductor?
A: The two-pin H-beam inductor is a single-winding power inductor; the three-pin H-beam is a dual-winding primary-secondary integrated structure that can be used for boost conversion and is mostly used in alarm circuit boost circuits.

Q: Can the inductance tolerance of the DR4*10 three-pin inductor be achieved at ±5%?
A: The default is ±10%, and the high-precision version can achieve ±5%, which is suitable for circuits with strict requirements for boost stability.

Q: Where is the DR4*10 three-pin inductor mainly used?
A: It is most commonly used in gas alarmers, smoke alarm buzzer boost drivers, and also in small LED flashing and small household appliance control board boost circuits.

Q: Can the pin length of the DR4*10 three-pin inductor be modified?
A: Yes, it supports lengthening / shortening the pins, which can meet the welding requirements of the customer's PCB board.

Q: Why is the packaging of the DR4*10 three-pin inductor yellow?
A: It is encapsulated with yellow epoxy resin, which has excellent insulation performance, can fix the windings, prevent dust and vibration, and is a commonly used color for alarmer boost inductors in the industry.
