Lead type bridge transformer 220v to 380v transformer

Lead type bridge transformer 220v to 380v transformer

EI54*25

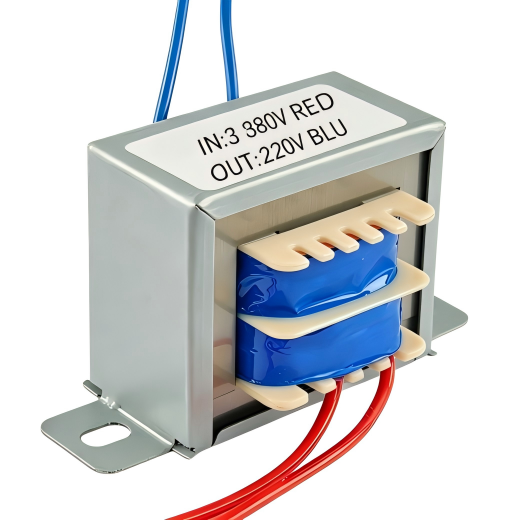

The core ei bridge transformer is a 50Hz/60Hz lead type low-frequency power conversion component.

Quantity

Contact Now

add to cart

The core ei bridge transformer is a 50Hz/60Hz lead type low-frequency power conversion component. It is equipped with an integrated dual-ear fixed bridge installation base, suitable for direct locking assembly with chassis, control cabinets, and cable trays. The product uses standard high-magnetic-permeability oriented silicon steel sheets to stack and form an EI core. It has low magnetic loss and small no-load current. The primary and secondary coils inside are separated by flame-retardant frames, and the windings use high-purity enameled copper wires. The outer layer is fully covered with multiple layers of mala insulating tape. The entire machine undergoes high-temperature vacuum immersion and drying treatment, ensuring the coils are compact and not loose, and the insulation and withstand voltage performance are excellent.
The entire machine is equipped with color-coded lead-out wires, with different colored wires (such as red, blue, and black) distinguishing the input and output terminals.
The standard model supports various voltage conversion specifications such as 220v to 380v transformer, 380V to 220V, 220V to 12/24/36V. It has a high-voltage and low-voltage electrical isolation function, which can isolate grid noise and leakage risks, and provide stable output of pure control voltage, suitable for industrial long-term uninterrupted power supply operation environments.

Core advantages of the Bridge transformer

1. The bridge frame and support are integrated, with strong installation adaptability.
It comes with a self-contained extended round-hole double-ear bridge base, eliminating the need for additional fixing components. Screws can directly lock onto the control cabinet, cable tray bridge frame, equipment base plate, wall-mounted box, and are compatible with various installation methods such as embedded, side-mounted, and horizontal placement. The assembly is simple and time-saving.
2. Electrical isolation is safe, and the anti-interference ability is strong.
The primary and secondary coil are completely insulated, blocking power surges and leakage conduction, protecting the rear circuit board and precision components; the metal shell + immersion paint shielding structure significantly reduces electromagnetic radiation, avoiding interference with sensors, PLC, and instrument signals.
3. Pure copper winding has low loss and is durable and stable.
The winding is made of oxygen-free pure copper enamel wire, with high conductivity efficiency. It has low temperature rise during long-term full-load operation and is not prone to overheating and aging; compared to aluminum wire transformers, it generates less heat and has a 2-3 times longer service life, suitable for 24-hour continuous working conditions.
4. Multi-layer insulation protection, with a high safety level.
The flame-retardant frame separates the coils, the double-layer Mala insulation film, and the overall immersion paint provide triple insulation protection. All are tested for high-voltage endurance at the factory, with a high breakdown voltage, preventing moisture and short circuits, and meeting the safety electricity usage standards for industrial control equipment.
5. Low vibration and low noise
The high-precision laminated silicon steel sheet core has uniform gaps, resulting in weak vibration during operation; the immersed paint fixed coil eliminates resonant noise from the coil, and can be used in silent environments such as computer rooms and instruments.
6. Dry type, maintenance-free, and has a wide environmental adaptability
It is oil-free, leak-free, and has no flammable media. It can be used in indoor normal temperature and mild humidity control cabinets, and no maintenance is required daily. It can withstand a wide temperature working range of -10℃ to 65℃.
7. Color-coded lead wires for identification, with zero wiring errors
Input and output use different colored wire materials for distinction. The body is printed with voltage parameter labels, allowing construction personnel to quickly distinguish between high and low voltage ends, effectively avoiding reverse voltage that could burn out control components.
8. Compact size, saving space
The compact EI core structure has a narrow thickness and occupies less space, perfectly adapting to small electrical control boxes, weak current boxes, and the internal narrow installation positions of instruments.

Customized Services

1. Voltage parameter customization
Input voltage: 220V, 380V, 400V, 110V, etc.;
Output voltage: single group / multiple groups of 6V, 12V, 24V, 36V, 110V, 220V. Supports boost, reduction, dual-channel isolated output non-standard windings.
2. Power specification customization
5VA to 1000VA full power coverage. Small power instrument models, medium power control cabinet models, and large power equipment matching models are produced as per customer requirements.
3. Outlet structure customization
Lead wire style: customize lead wire length, replace wire material sheath, adjust wire color;
Terminal style: can be changed to plug-in terminals, connection posts, straight insertion pins, solder pad type outlet, suitable for automated welding.
4. Installation structure customization
Bridge frame support can be single ear, no support, DIN rail snap type; customize support size, opening distance, suitable for customer exclusive chassis; can remove metal casing to make bare core style.
5. Material upgrade customization
Winding can choose pure copper/aluminum wire; iron core can choose thickened high magnetic permeability silicon steel sheet; insulation material upgrades to high-temperature resistant Malla tape, suitable for high-temperature equipment; enclosure can customize painting color, silk screen customer LOGO and parameter labels.
6. Performance and process customization
Strengthen moisture-proof, salt spray immersion paint treatment, suitable for humid outdoor cabinets; thickened shielding layer, used for high-precision instruments to resist interference; increase withstand voltage level to meet special equipment safety standards.
7. Accessories and certification services
Large batch orders can be equipped with fixed screws, insulating pads; can provide factory insulation test report, CQC insulation certification, withstand voltage test form; support long-term stable supply in batches, one-stop equipment matching.
8. Non-standard special mold customization
Special ultra-thin, narrow-sized iron core suitable for narrow chassis; dual isolation, multi-winding multi-channel output, special boost transformers can be independently produced.

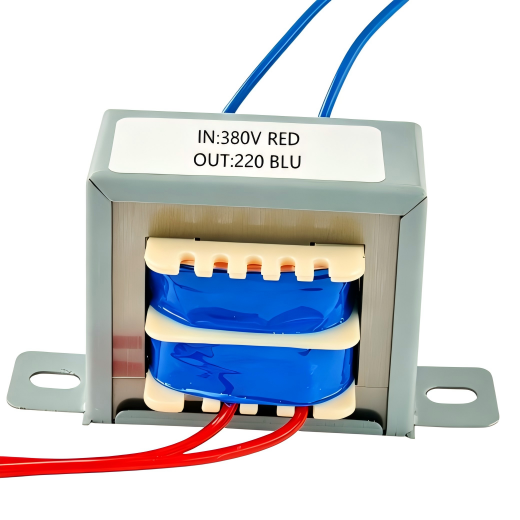

Bridge type transformer real-shot details：
