Vertical common mode filter surface mount inductor 50MH UU series High‑frequency power supply
UU9.8
It is a pcb inductor designed with UU type magnetic core structure.
Download directory
Download directory
UU type magnetic core it is a pure copper wire winding inductor core,core component for suppressing EMI electromagnetic interference in power circuits of switching power supplies, household appliances, and industrial equipment. With its excellent filtering performance, high reliability, and high cost-effectiveness, it is widely used in various low and medium power supply scenarios.
Product parameters
| Brand | CXWON | Inductance | 1.5MH |
| Winding form | Multi‑layer flat winding type | Magnetizer Properties | Ferrite core |
| Operating frequency | High‑frequency | Installation Method | Vertical Non‑sealed |
| Allowable error | ±10% | Nominal voltage | 220（V） |
| Specifications | 0.45mm pure copper wire /1MH /vertical type, 0.45mm pure copper wire /1MH /horizontal type, 0.45mm pure copper wire /1.5MH /vertical type, 0.45mm pure copper wire /1.5MH /horizontal | Scope of Application | Filtering |
| Type | Common‑mode inductor | Inductive reactance XL | 170m（Ω） |

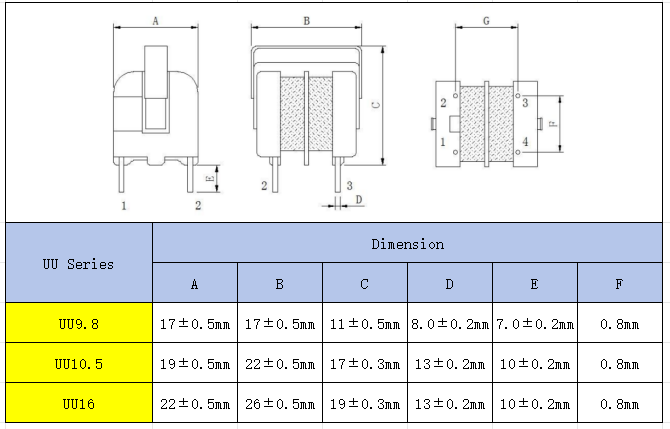

Common models
Core advantages of Surface mount inductor
1. The symmetrical structure of UU type magnetic core significantly reduces winding leakage inductance and has a significant attenuation effect on high-frequency common mode noise, which can help the product easily pass EMC electromagnetic compatibility certification and improve the overall anti-interference performance of the equipment.
2.The differential mode signal of normal operating current presents low impedance, which will not cause additional voltage drop and loss, ensuring the efficiency of the power circuit and adapting to energy-saving power supply design.
3. The skeleton is made of flame-retardant and high-temperature resistant plastic material, and the insulation treatment between winding layers is complete. The insulation level meets the safety requirements of household appliances and industrial control equipment, effectively avoiding the risks of leakage and breakdown.
4. The injection molding skeleton+immersion paint reinforcement process has excellent seismic, temperature and moisture resistance, and is suitable for long-term continuous working scenarios such as household appliances and industrial equipment, with a long service life.
5.The inductance and current level specifications are complete, suitable for various low and medium power supply circuits, with good consistency in mass production and significant cost advantages. It is the preferred solution for mass production power supply projects.
