Surface mounted micro transformer network 10pins
cxw10TS

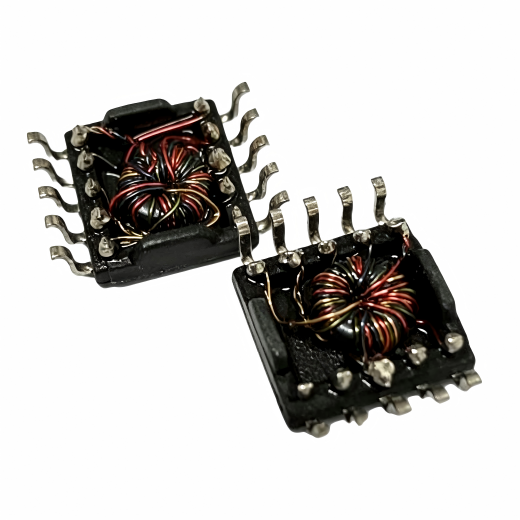

The Micro transformer network adopts a standard SMD pcb chip package, with a built-in high permeability ring magnetic core and precision winding of multiple enameled wires.
Quantity
The Micro transformer network adopts a standard SMD pcb chip package, with a built-in high permeability ring magnetic core and precision winding of multiple enameled wires. It integrates signal transformation and common mode choke functions, supports 10/100BASE-T Ethernet transmission, and can achieve 100 Ω differential impedance matching, suitable for various network port circuits.
Core advantages of Surface mount 12 pulse transformer network
1. Extreme miniaturization, saving PCB space: Compared to traditional RJ45 integrated solutions with transformers, the volume is significantly reduced, making it suitable for compact and high-density PCB designs.
2. Full SMT process, high production efficiency: supports automated mounting and reflow soldering, no need for manual plug-ins, good consistency, high yield, significantly reducing production costs.
3. Flexible design, adaptable to multi port solutions: The single port independent design allows for flexible configuration of the number of ports according to demand, avoiding the redundancy and waste of traditional multi port transformers.
4. High isolation and anti-interference, stable performance: Built in common mode suppression structure, while achieving electrical isolation and EMI filtering, effectively suppressing surges, lightning strikes, and electromagnetic interference, and improving equipment reliability.
Customized Services
1. Customization of electrical parameters
Turn ratio, impedance value and isolation voltage can be adjusted as required to adapt to 10/100M/gigabit different transmission rates
Customize special working voltage and frequency range, suitable for harsh scenarios such as industrial/automotive grade
2. Packaging and structural customization
Support SOIC-8/16, custom pin layout, size specification adjustment, and adaptation to special PCB board types
Optional high temperature and corrosion-resistant materials, meeting the requirements of wide temperature operation from -40 ℃ to 125 ℃
3. Customization of Process and Performance
We can optimize the winding process according to customer needs, improve EMC anti-interference performance, and meet industry standard certification
Provide full cycle services of sampling, small batch, and large batch, supporting fast sample production and on-demand mass productio

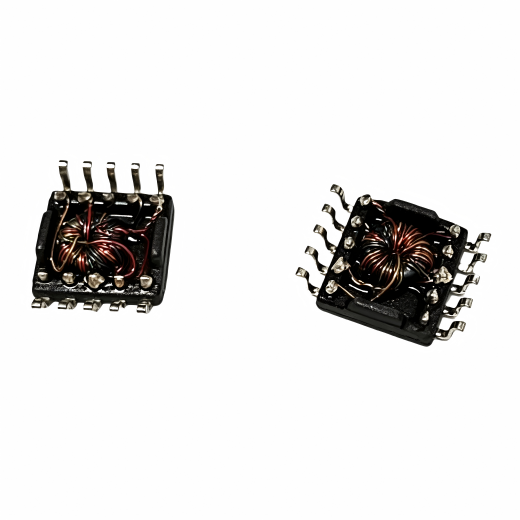

Surface mount pulse transformer real-shot details：
Company Introduction
Shenzhen CXWON Technology Co., Ltd. was established in 2012. It is a national high-tech enterprise that integrates R&D, production and sales. It has been specializing in the field of electronic transformers for over a decade and complies with international safety standards. The company's products have steadily increased their market share in the domestic market. The factory covers an area of 5,000 square meters and is equipped with first-class facilities and advanced equipment, as well as numerous outstanding professionals.
The company offers over 1,000 different products, specializing in the research and production of high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, ozone high-voltage packs, negative ion generators, power adapters, switching power supplies, and various inductor coils. These products are widely used in household appliances, intelligent control, communication equipment, instruments and meters, security control, industrial control, and many other fields. The company provides high-performance electronic transformers and corresponding solutions to global customers. Its products have passed UL certification and ISO quality management system certification. Some have also obtained safety certifications such as TUV, GS, CE, FCC, and CQC. The quality meets international standards.
Over the years, our company has adhered to the principle of"unceasing pursuit of perfect quality and fully meeting customer requirements."This is the company's persistent effort goal and direction.
The company offers over 1,000 different products, specializing in the research and production of high-frequency transformers, high-voltage transformers, low-frequency transformers, audio transformers, ozone high-voltage packs, negative ion generators, power adapters, switching power supplies, and various inductor coils. These products are widely used in household appliances, intelligent control, communication equipment, instruments and meters, security control, industrial control, and many other fields. The company provides high-performance electronic transformers and corresponding solutions to global customers. Its products have passed UL certification and ISO quality management system certification. Some have also obtained safety certifications such as TUV, GS, CE, FCC, and CQC. The quality meets international standards.
Over the years, our company has adhered to the principle of"unceasing pursuit of perfect quality and fully meeting customer requirements."This is the company's persistent effort goal and direction.
Typical application scenarios
1. Consumer electronics: Ethernet interface circuits for routers, switches, USB cards, set-top boxes, and smart TVs.
2. Industrial control category: industrial switches PLC、 Network interface module for security cameras, IoT gateways, and industrial control boards.
3. Communication equipment category: network signal isolation and transmission for optical cats, fiber optic transceivers, mini base stations, and small communication terminals.
4. Customized solutions: compact devices with limited space, multi port expansion boards, industrial grade anti-interference communication modules.

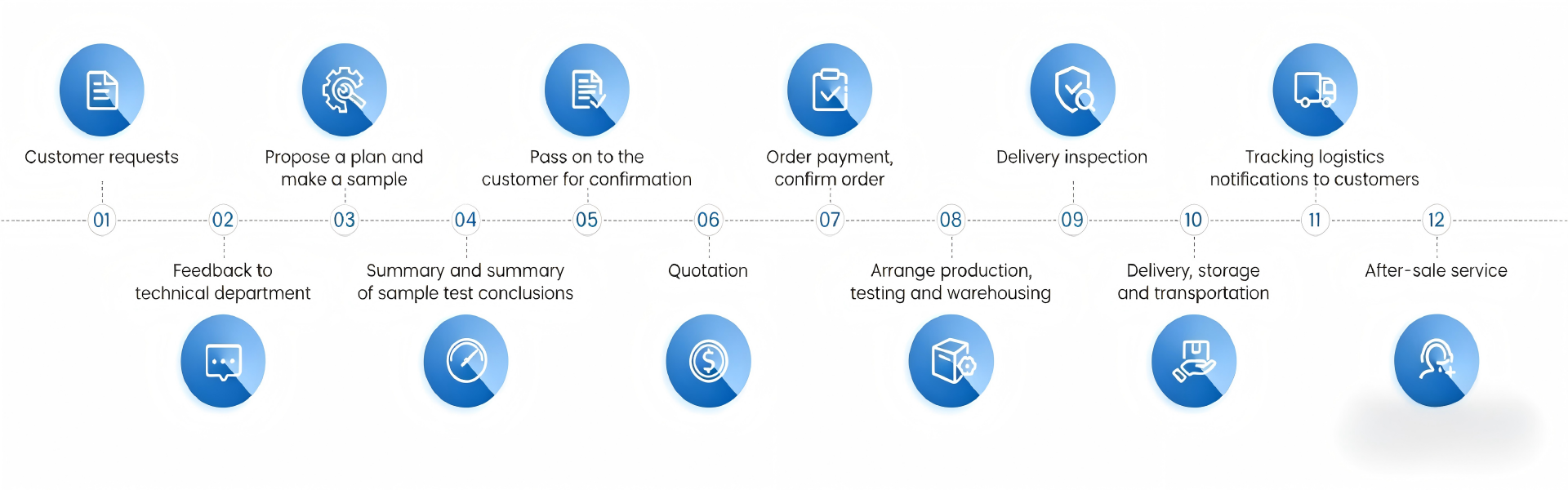

Flowchart
