Full transformer specification LED driver adapter power transformer manufacturer
EE16
The EE high-frequency transformer is made of high-quality ferrite cores with precision, including a full range of specifications such as EE8, EE10, EE13, EE16, EE19, EE22, EE25,EE28,etc. It is divided into two installation structures: vertical and horizontal, with small size and simple wiring.
Quantity
The EE Series pin transformerpin transformer is made of high-quality ferrite cores with precision, including a full range of specifications such as EE8, EE10, EE13, EE16, EE19, EE22, EE25, etc,pin type transformer support non-standard customization.It is divided into two installation structures: vertical and horizontal, with small size and simple wiring. It has the characteristics of high-frequency voltage regulation, stable current, and strong insulation, and is suitable for various electronic products such as switching power supplies, LED drivers, chargers, small appliances, smart homes, industrial control power supplies, fast charging power supplies, etc. It meets environmental safety standards and is a commonly used isolation and transformation component in power circuits.
Core advantages of EE smps transformersmps transformer
1. Extremely low loss: The ferrite core has good magnetic conductivity, low heat generation during high-frequency operation, and is energy-saving and durable;
2. Efficient Conversion: High energy conversion rate, reducing the overall energy consumption of the power supply and improving equipment stability;
3. Safe and reliable: multi-layer insulation winding, high voltage resistance, anti breakdown, anti short circuit;
4. Wide adaptability: All models are complete, universal and versatile, suitable for the vast majority of power circuit boards;
5. Solid workmanship: Pure copper enameled wire winding, not easy to break or age, long service life;
6. Fast delivery time: sufficient stock, fast customization and sampling speed, stable large-scale shipment;
7. High cost-effectiveness: Direct supply from the source factory, no intermediary price difference, large quantity and excellent price;
8. Strong environmental adaptability: resistant to high and low temperatures, anti-interference, suitable for various indoor and outdoor electrical scenarios.
Customized Services
1. Customization of specifications: Customize different turns, transformation ratios, input and output voltages;
2. Structural customization: vertical/horizontal, pin length, pin spacing, and output method customization;
3. Power customization: Small power, medium power, and high-power EE transformers can be customized as needed;
4. Material customization: High temperature resistant copper wire, skeleton material, and insulation material selection;
5. Process customization: fully wrapped adhesive, semi wrapped adhesive, flame-retardant insulation, moisture-proof and temperature resistant treatment;
6. Parameter customization: precise adjustment of inductance, leakage inductance, withstand voltage, and temperature rise parameters;
7. Supporting services: free drawing, fast sampling, material processing, OEM manufacturing;
8. Certification customization: Supports production according to safety standards such as RoHS, CQC, UL, etc.

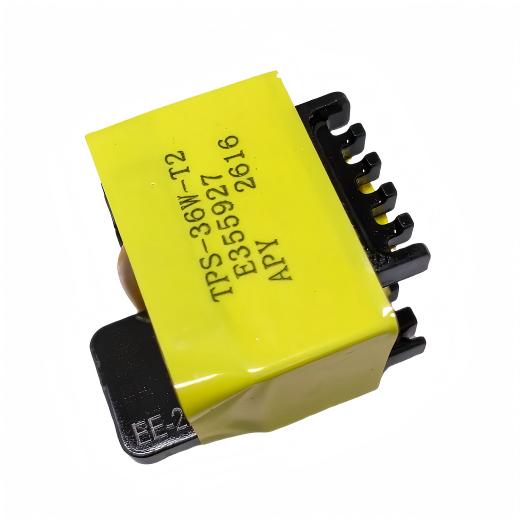

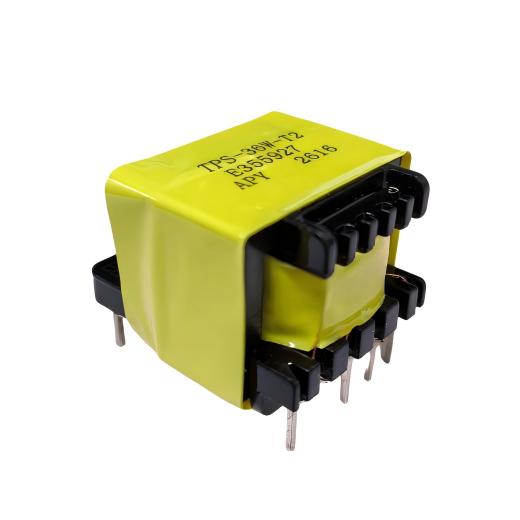

EE series transformer real-shot details：
